Home >> Mazda >> 2011 >> RX8 2RTR-1.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0112-a (Cooling System)

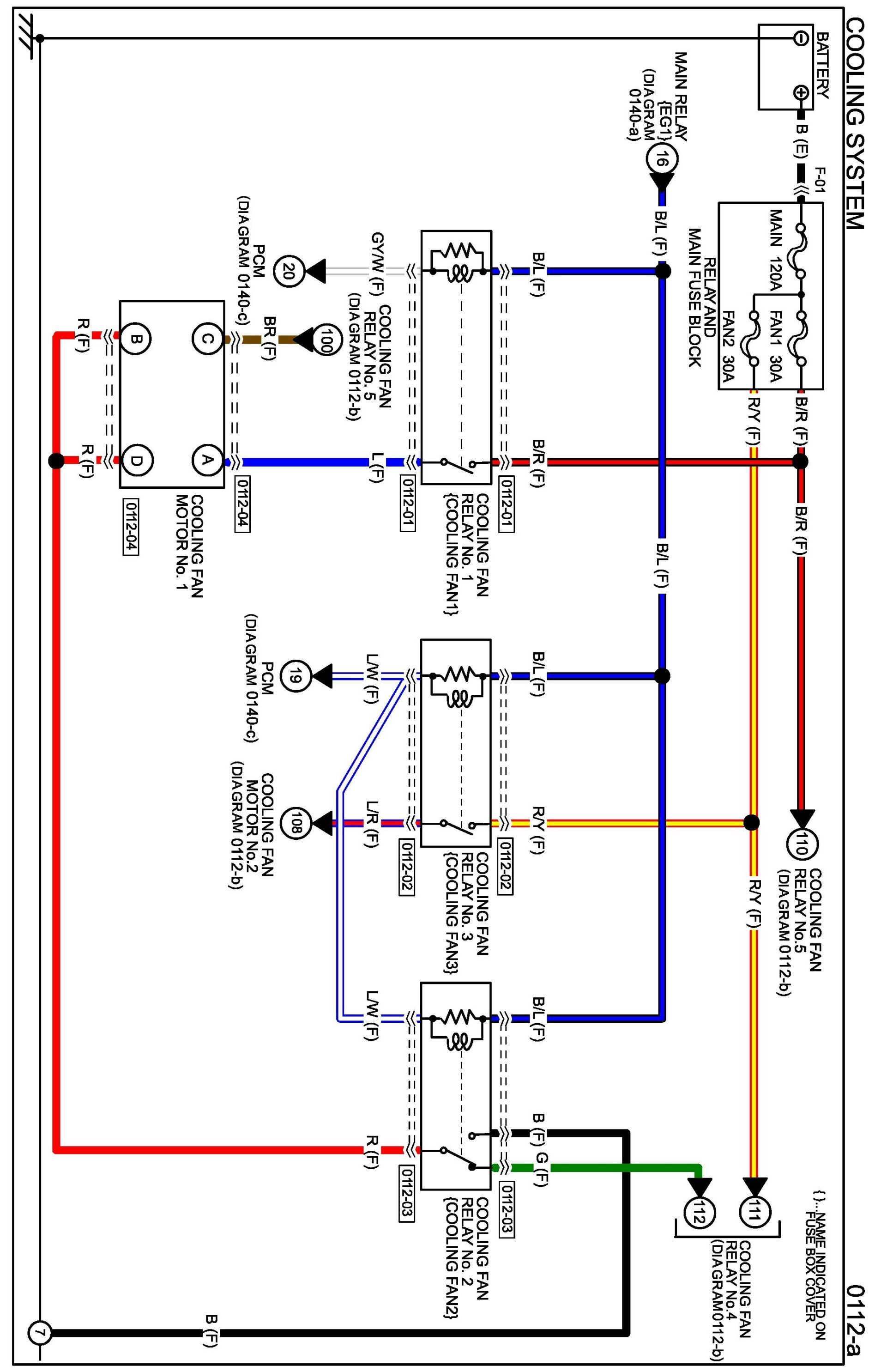

Diagram 0112-a (Cooling System)

Diagram 0112-a:
