Tire House Trim Removal/Installation

TIRE HOUSE TRIM REMOVAL/INSTALLATION

1. Remove the rear seat. Rear Seat Removal/Installation

2. Remove the inner scuff plate. Inner Scuff Plate Removal/Installation

3. Partially peel back the seaming welt.

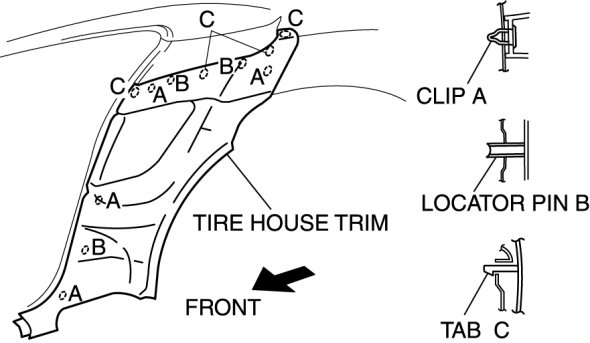

4. Pull the tire house trim outward and detach clips A and locator pins B.






5. Detach tabs C and remove the tire house trim.

6. Install in the reverse order of removal.
