Side Panel Removal/Installation

SIDE PANEL REMOVAL/INSTALLATION

1. Remove the inner scuff plate. Inner Scuff Plate Removal/Installation

2. Remove the front side trim. Front Side Trim Removal/Installation

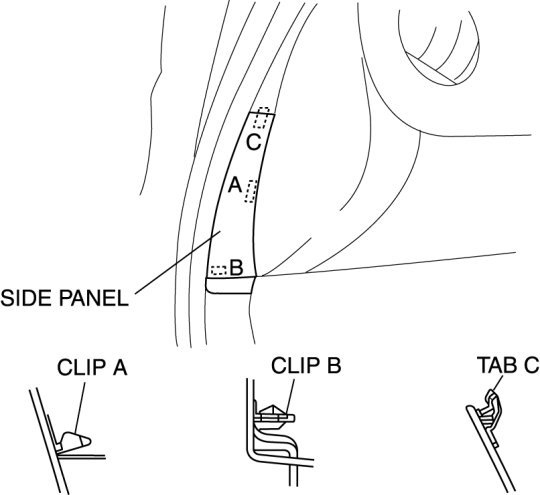

3. Detach clips A and B, using a flathead screwdriver wrapped with protective tape.






4. Pull the side panel outward and detach tab C from the dashboard, then remove the side panel.

5. Install in the reverse order of removal.
