Rear Pillar Trim Removal/Installation

REAR PILLAR TRIM REMOVAL/INSTALLATION

1. Remove the rear seat. Rear Seat Removal/Installation

2. Remove the inner scuff plate. Inner Scuff Plate Removal/Installation

3. Remove the tire house trim. Tire House Trim Removal/Installation

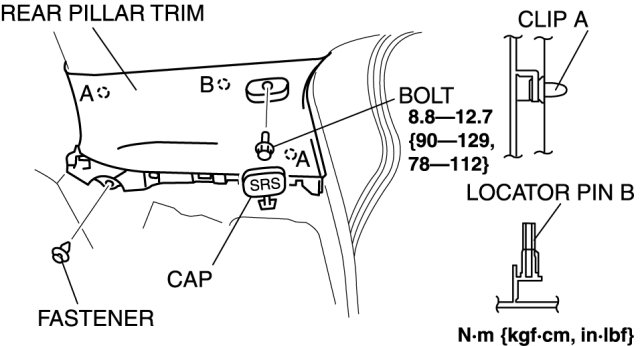

4. Remove the cap using a fastener remover.(Vehicles with curtain air bags)






5. Remove the bolt. (Vehicles with curtain air bags)

6. Remove the fastener.

7. Detach clips A and locator pin B, using a fastener remover, and remove the rear pillar trim.

8. Install in the reverse order of removal.
