Outer Scuff Plate Removal/Installation

OUTER SCUFF PLATE REMOVAL/INSTALLATION

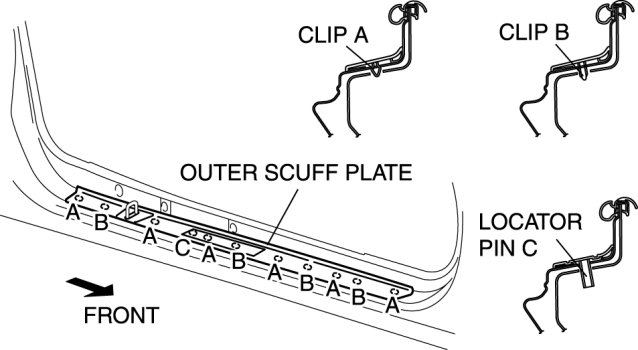

1. Pull the outer scuff plate upward, detach clips A, B, and locator pin C from the body, and then remove the outer scuff plate.






2. Install in the reverse order of removal.
