Glove Compartment: Service and Repair

GLOVE COMPARTMENT REMOVAL/INSTALLATION

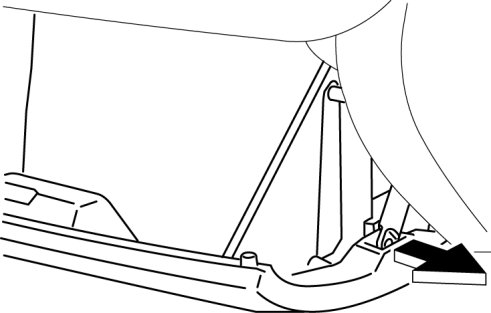

1. Pull the stay damper in the direction shown in the figure, and detach the connecting part between the glove compartment and the stay damper.

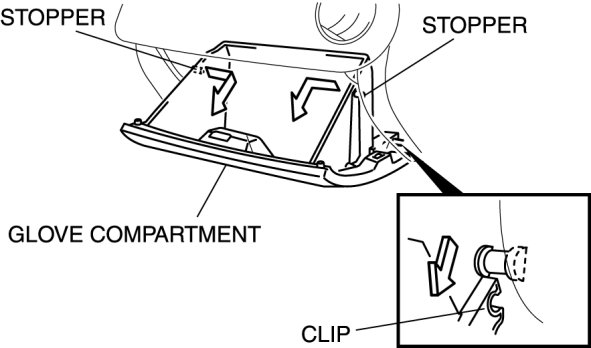

2. Press the stopper in and remove it.






3. Lower the glove compartment.

4. Detach the clips from the dashboard and remove the glove compartment.

5. Install in the reverse order of removal.
