Removal and Replacement

CONSOLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the rear seat. Rear Seat Removal/Installation

3. Remove the rear package trim. Service and Repair

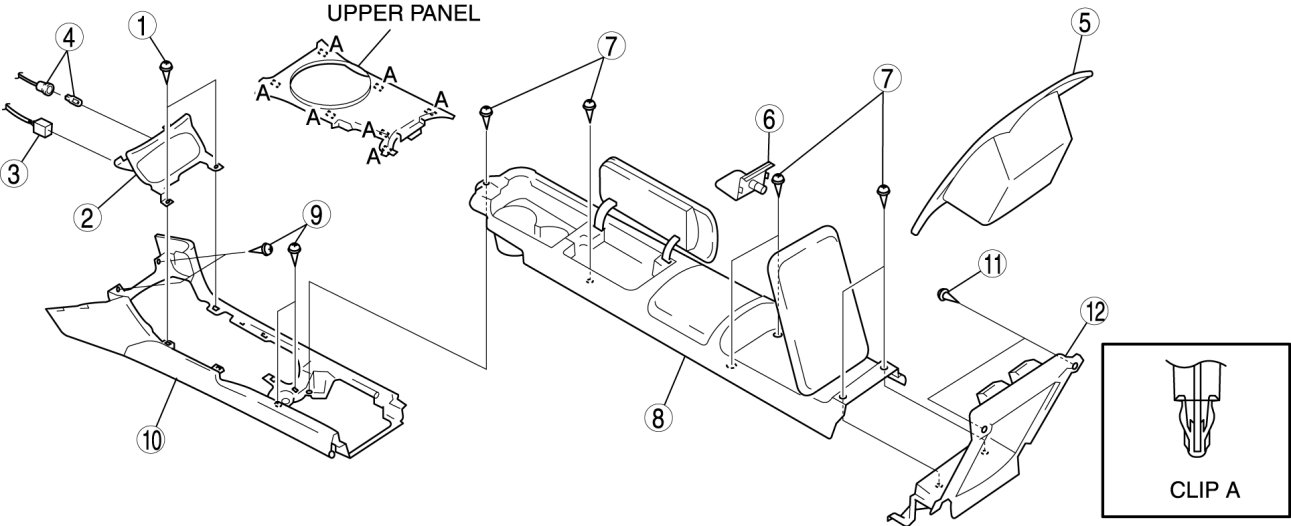

4. Detach clips A and remove the upper panel.

5. Disassemble in the order indicated in the table.










6. Install in the reverse order of removal.

Ashtray Panel Removal Note

1. Remove the ashtray panel using a flathead screwdriver wrapped with protective tape.
