Overhaul




CONSOLE DISASSEMBLY/ASSEMBLY

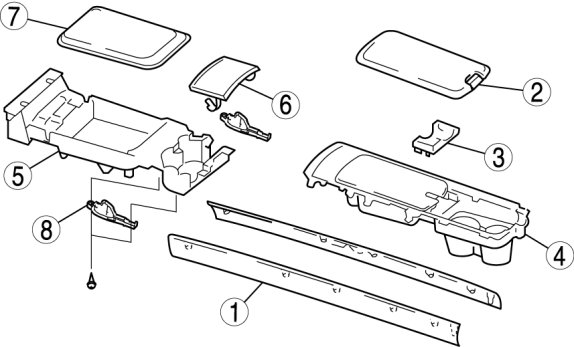

Front Console

1. Disassemble in the order indicated in the table.










2. Assemble in the reverse order of disassembly.

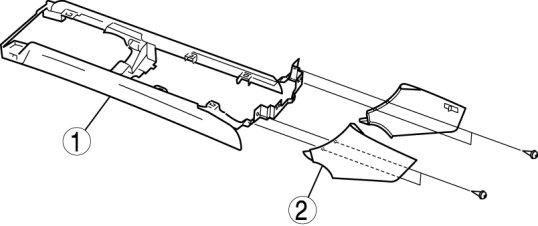

Rear Console

1. Disassemble in the order indicated in the table.










2. Assemble in the reverse order of disassembly.
