Rear Door Striker: Service and Repair

REAR DOOR LOCK STRIKER REMOVAL/INSTALLATION

Upper

1. Remove the following parts:
a. A-pillar trim (See A-Pillar Trim Removal/Installation.)

b. Sunvisor Service and Repair

c. Assist handle Service and Repair

d. Roof side trim Roof Side Trim Removal/Installation

e. Inner scuff plate Inner Scuff Plate Removal/Installation

f. Rear seat Rear Seat Removal/Installation

g. Tire house trim Tire House Trim Removal/Installation

h. Rear pillar trim Rear Pillar Trim Removal/Installation

i. Interior light Service and Repair

j. Map light Service and Repair

k. Headliner Service and Repair

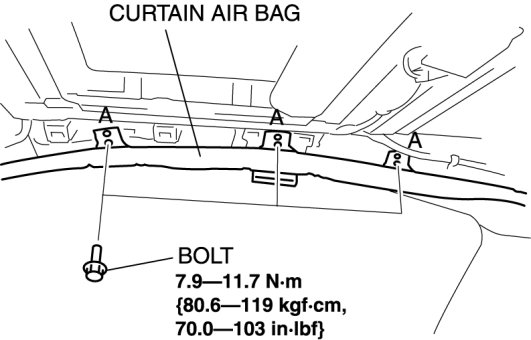

2. Remove the bolts A from the curtain air bag module.

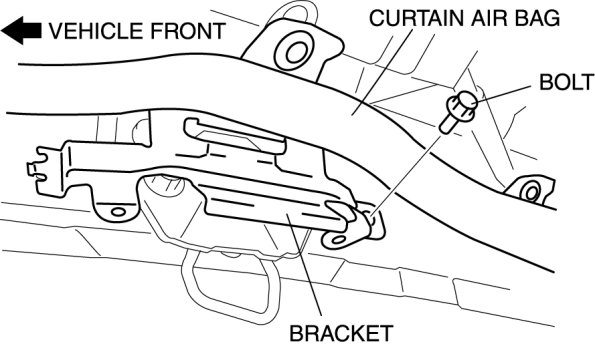

3. Remove the bolt, then remove the bracket.

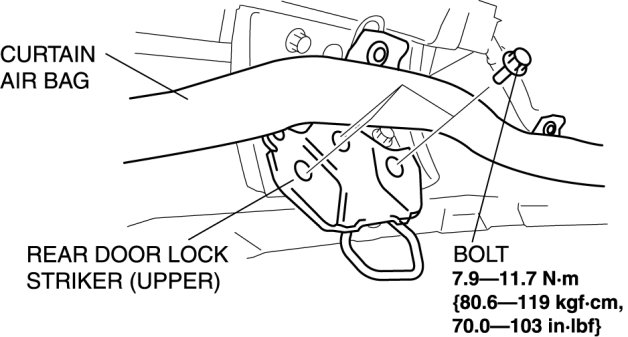

4. Remove the bolts, then remove the rear door lock striker (upper).






5. Install in the reverse order of removal.

6. Adjust the door. Adjustments

Lower

1. Remove the outer scuff plate. Outer Scuff Plate Removal/Installation

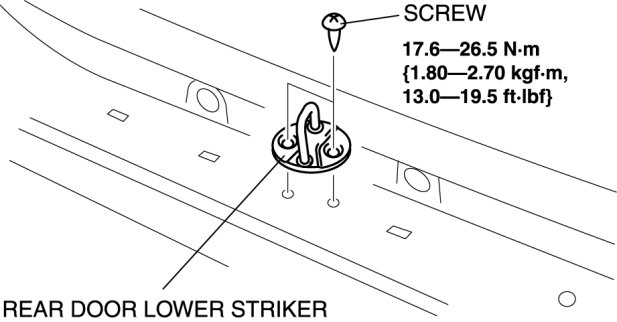

2. Remove the screws, then remove the rear door lock striker (lower).






3. Install in the reverse order of removal.

4. Adjust the door. Adjustments
