Cabin Noise Sensor: Service and Repair

AUDIOPILOT MICROPHONE REMOVAL/INSTALLATION

NOTE:
- "AUDIOPILOT" is a registered trademark of Bose(R) Corporation.

1. Disconnect the negative battery cable.

2. Remove the lower panel. Lower Panel Removal/Installation

3. Remove the Knee bolster. Knee Bolster Removal/Installation

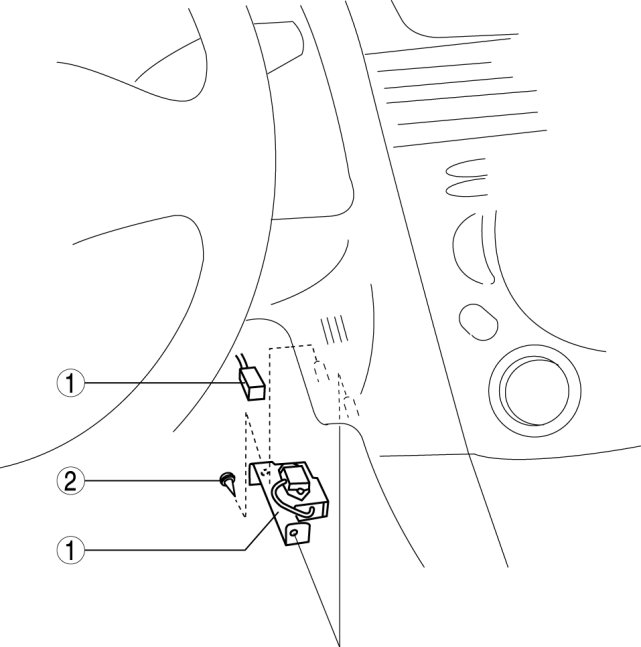

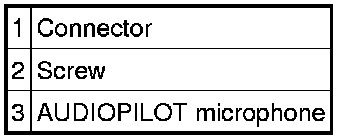

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
