Sirius Satellite Radio Antenna Feeder Inspection

SIRIUS SATELLITE RADIO ANTENNA FEEDER INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear seat Rear Seat Removal/Installation

b. Inner scuff plate Inner Scuff Plate Removal/Installation

c. Tire house trim Tire House Trim Removal/Installation

d. Rear pillar trim Rear Pillar Trim Removal/Installation

e. Trunk end trim Trunk End Trim Removal/Installation

f. Trunk side trim (RH)

3. Remove the fasteners, then slightly bend back the headliner.

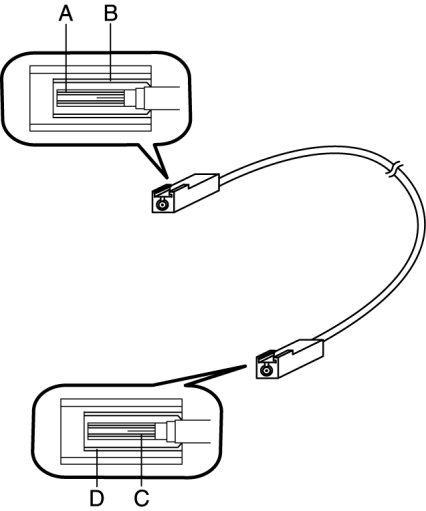

4. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the SIRIUS satellite radio antenna feeder.
