AM/FM Antenna Feeder No.2 Inspection

AM/FM ANTENNA FEEDER NO.2 INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Inner scuff plate (LH) Inner Scuff Plate Removal/Installation

b. Front side trim (LH) Front Side Trim Removal/Installation

c. Rear seat (LH) Rear Seat Removal/Installation

d. Tire house trim (LH) Tire House Trim Removal/Installation

e. Rear pillar trim (LH) Rear Pillar Trim Removal/Installation

3. Remove the fasteners, then slightly bend back the headliner.

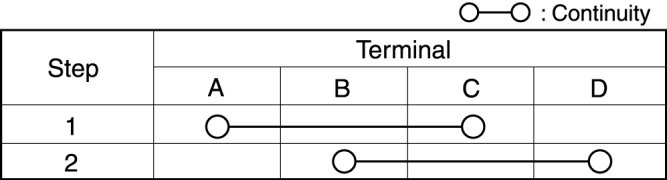

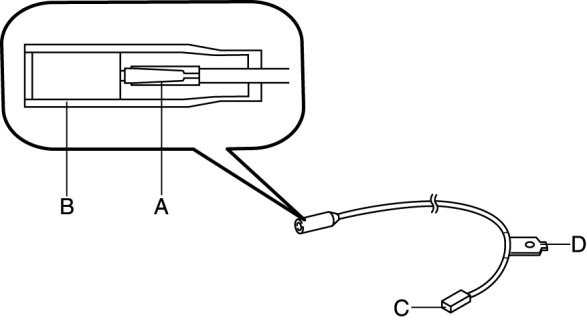

4. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the AM/FM antenna feeder No.2.
