AM/FM Antenna Feeder No.1 Inspection

AM/FM ANTENNA FEEDER NO.1 INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Shift lever knob (MT) Transmission Removal/Installation

b. Shift knob (AT) Selector Lever Removal/Installation

c. Upper panel Removal and Replacement

d. Ashtray panel Removal and Replacement

e. Lower panel Lower Panel Removal/Installation

f. Knee bolster Knee Bolster Removal/Installation

g. Center panel unit Center Panel Unit Removal/Installation

h. Inner scuff plate (LH) Inner Scuff Plate Removal/Installation

i. Front side trim (LH) Front Side Trim Removal/Installation

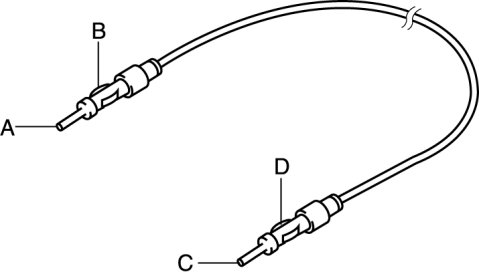

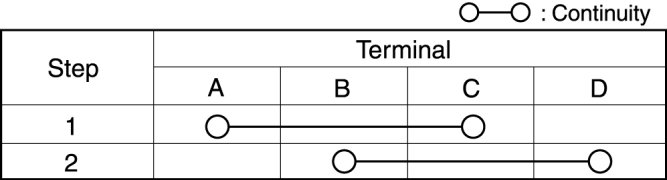

3. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the AM/FM antenna feeder No.1.
