Multiplex Communication System - DTC Table

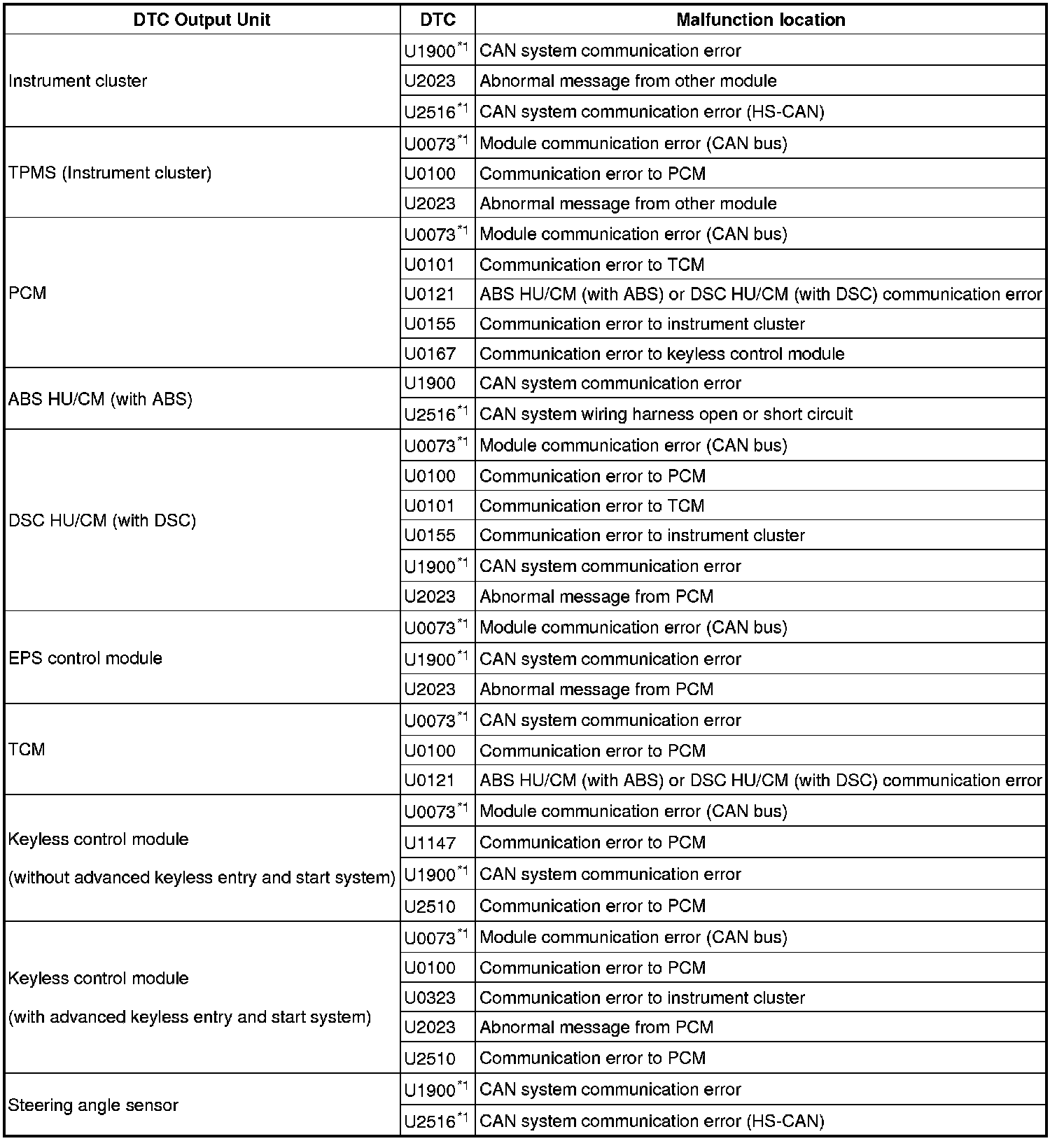

DTC TABLE [MULTIPLEX COMMUNICATION SYSTEM]
HS-CAN
*1
If only the target DTCs are displayed, perform the corresponding DTC inspection without determining the open circuit location.
MS-CAN
*1
If only the target DTCs are displayed, perform the corresponding DTC inspection without determining the open circuit location.
