Manual Air Conditioner

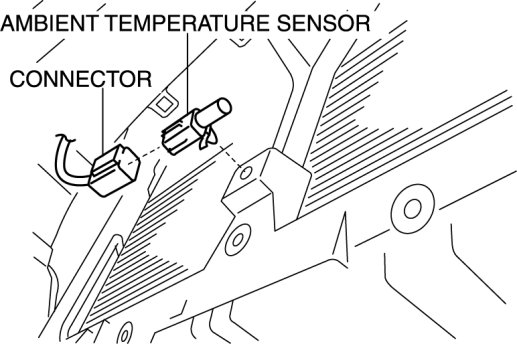

AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the under cover.

3. Disconnect the connector.






4. Remove the ambient temperature sensor.

5. Install in the reverse order of removal.
