Home >> Mazda >> 2011 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Locations >> Connector Locations >> C-31 (Rear Harness-Door No.3 Harness)

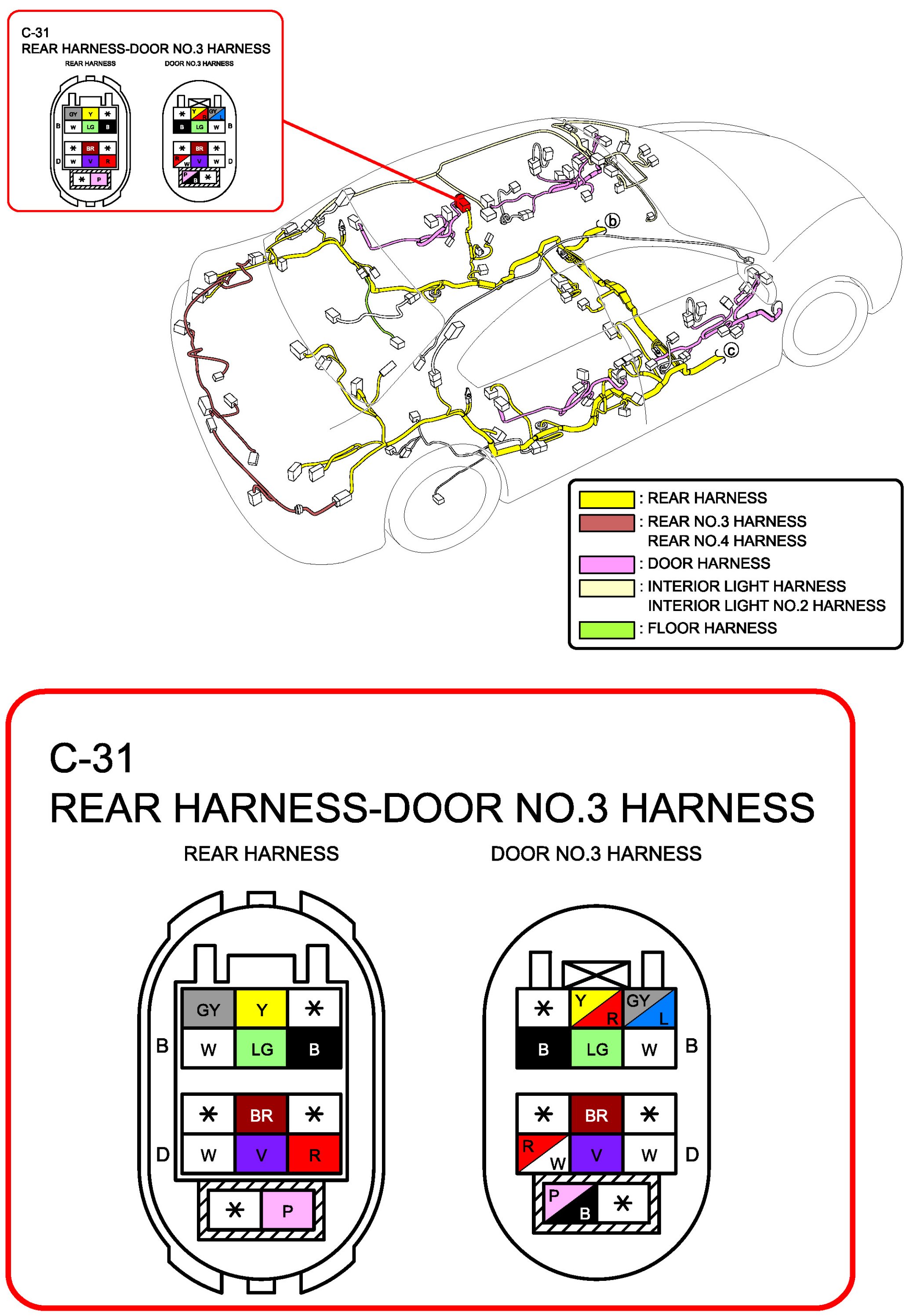

C-31 (Rear Harness-Door No.3 Harness)
