No. 6 Instrument Cluster Illumination Does Not Illuminate




NO. 6 INSTRUMENT CLUSTER ILLUMINATION DOES NOT ILLUMINATE WHEN TAILLIGHTS ILLUMINATE [INSTRUMENT CLUSTER]

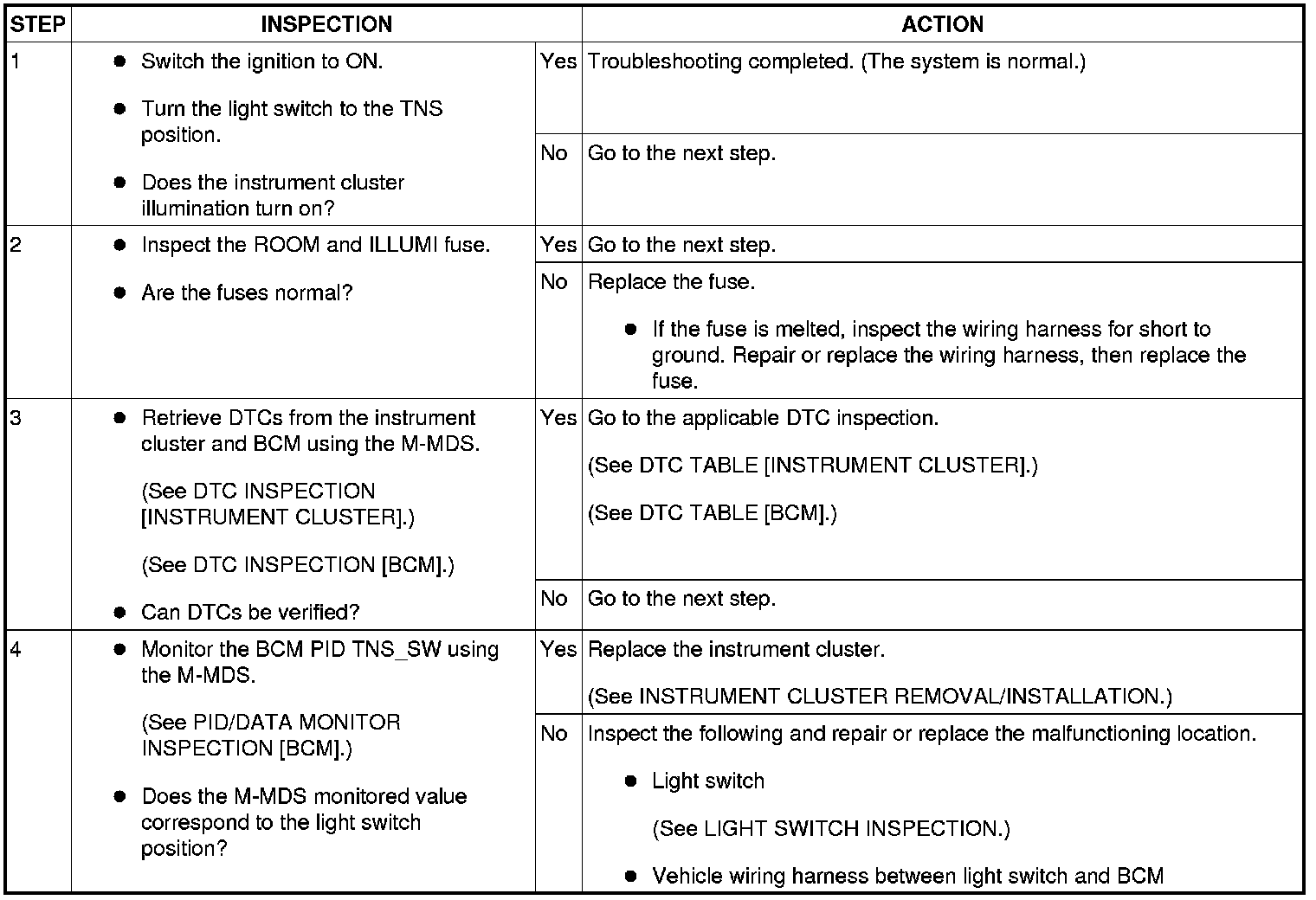

Diagnostic procedure
