Drive Belt Tensioner: Testing and Inspection




DRIVE BELT AUTO TENSIONER INSPECTION [L3 WITH TC]

1. Remove the aerodynamic under cover No.2 and splash shield as a single unit. Aerodynamic Under Cover No.2 Removal/Installation Splash Shield Removal/Installation

2. Remove the drive belt. Service and Repair

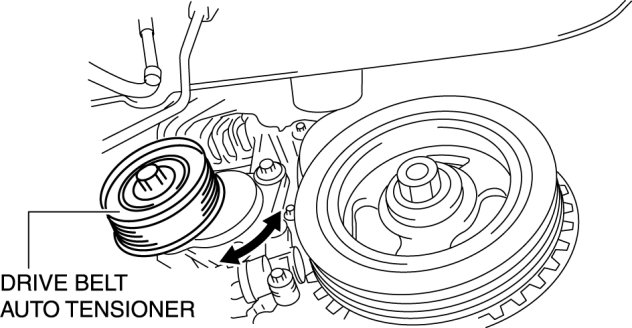

3. Verify that the drive belt auto tensioner moves smoothly in the operational direction.






- Replace the drive belt auto tensioner if necessary. Engine Disassembly/Assembly

4. Rotate the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.

- Replace the drive belt auto tensioner if necessary. Engine Disassembly/Assembly

5. Install the drive belt. Service and Repair

6. Install the aerodynamic under cover No.2 and splash shield as a single unit. Aerodynamic Under Cover No.2 Removal/Installation Splash Shield Removal/Installation
