Home >> Mazda >> 2011 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0920-4a (Bluetooth System (Hands-Free Telephone (HF/TEL) System))

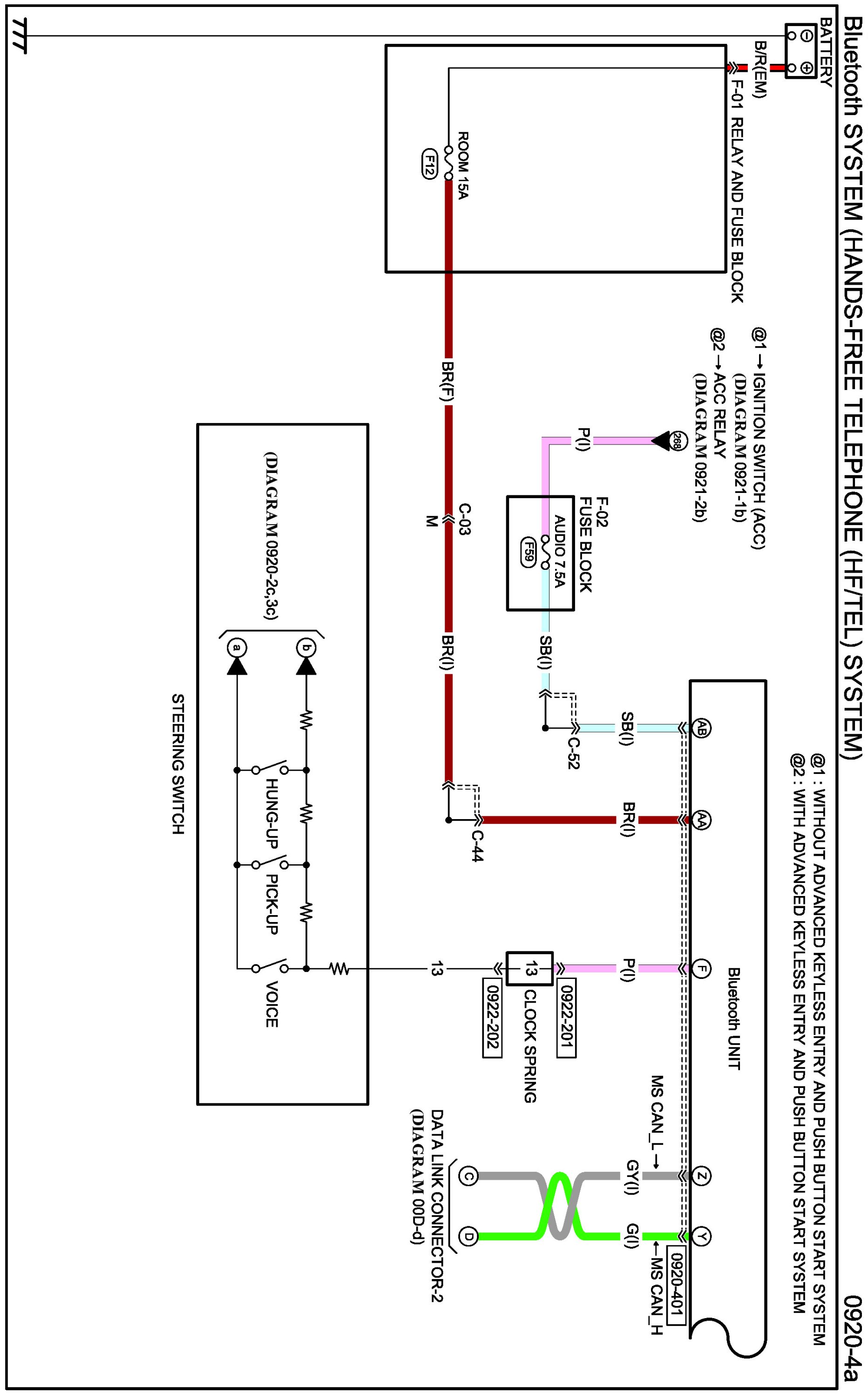

Diagram 0920-4a (Bluetooth System (Hands-Free Telephone (HF/TEL) System))

Diagram 0920-4a:
