Slide Motor Inspection




SLIDE MOTOR INSPECTION

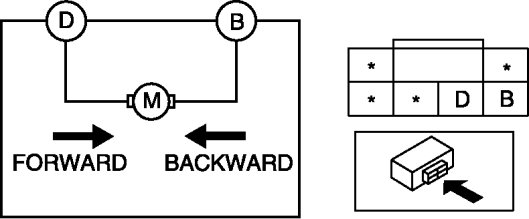

Vehicles With Power Seat control Module

1. Disconnect the slide motor connector.

2. Apply battery positive voltage to the slide motor terminals and inspect the slide motor operation






- If not as specified, replace the front seat slide adjuster.

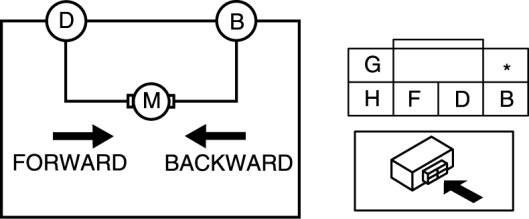

Vehicles Without Power Seat control Module

1. Disconnect the slide motor connector.

2. Apply battery positive voltage to the slide motor terminals and inspect the slide motor operation






- If not as specified, replace the front seat slide adjuster.
