Front Tilt Motor Inspection

FRONT TILT MOTOR INSPECTION

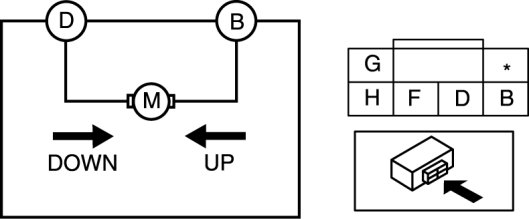

Vehicles With Power Seat Control Module

1. Disconnect the front tilt motor connector.

2. Apply battery positive voltage to the front tilt motor terminals and inspect the front tilt motor operation






- If not as specified, replace the front seat slide adjuster.

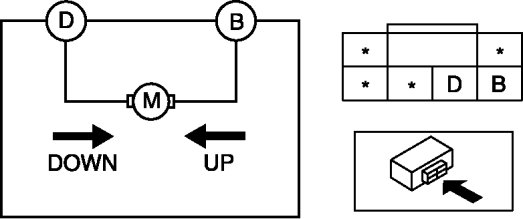

Vehicles Without Power Seat Control Module

1. Disconnect the front tilt motor connector.

2. Apply battery positive voltage to the front tilt motor terminals and inspect the front tilt motor operation






- If not as specified, replace the front seat slide adjuster.
