Windshield Wiper And Washer Switch Inspection

WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

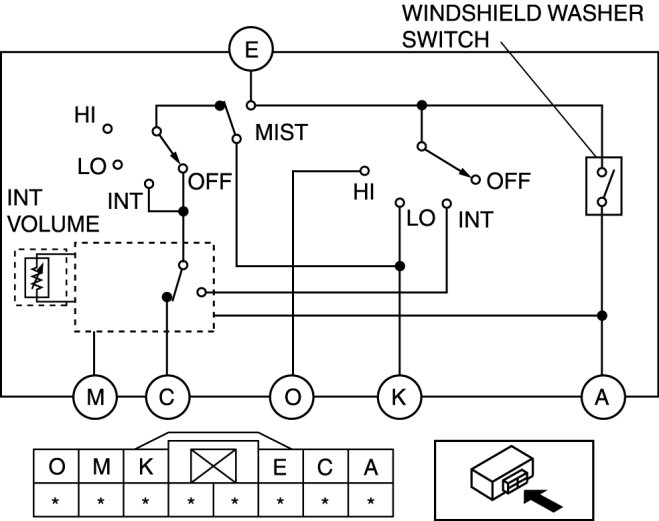

Vehicles Without Auto Wiper System

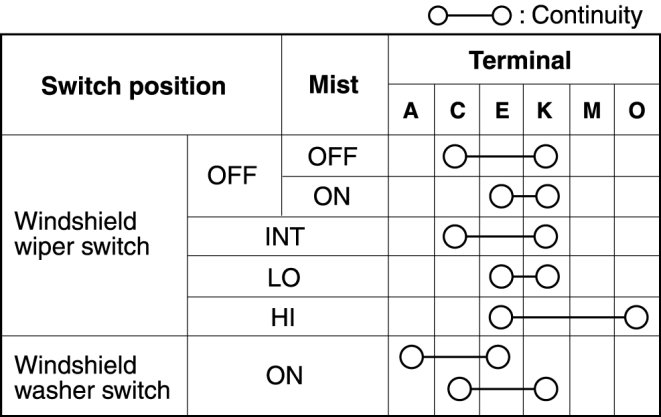

1. Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.






- Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.

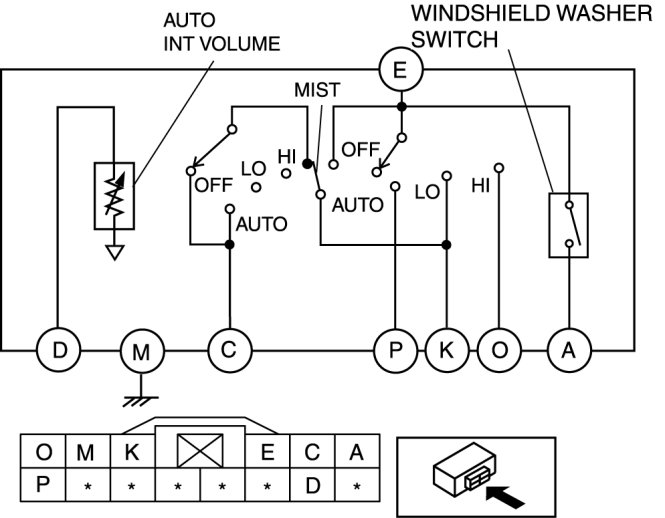

Vehicles With Auto Wiper System

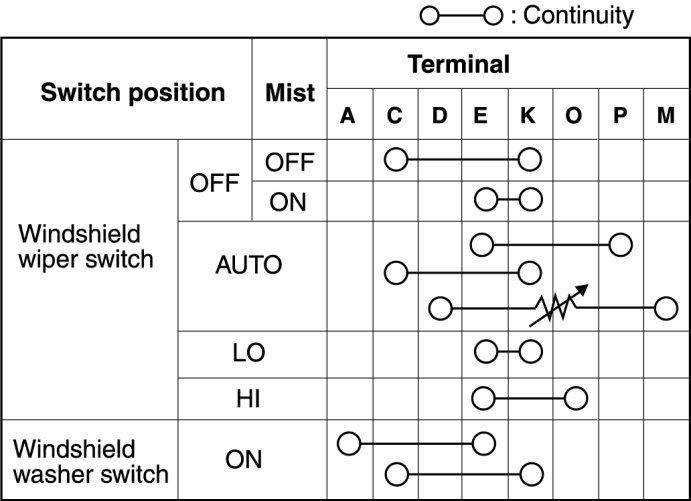

1. Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.






- Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.
