Rear Wiper Motor Removal/Installation

REAR WIPER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the rear wiper arm and blade. Rear Wiper Arm And Blade Removal/Installation

3. Remove the liftgate upper trim.

4. Remove the liftgate side trim.

5. Remove the liftgate lower trim.

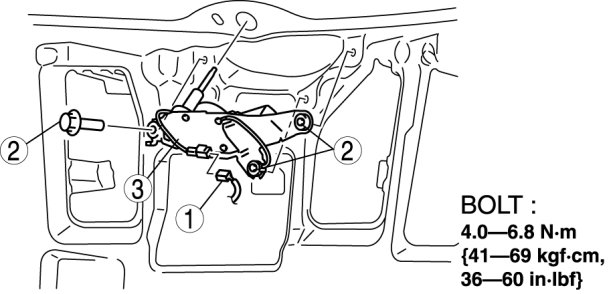

6. Remove in the order indicated in the table.










7. Install in the reverse order of removal.
