Key Reminder Switch: Testing and Inspection

KEY REMINDER SWITCH INSPECTION [WITHOUT ADVANCED KEYLESS ENTRY AND START SYSTEM]

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

3. Disconnect the key reminder switch connector.

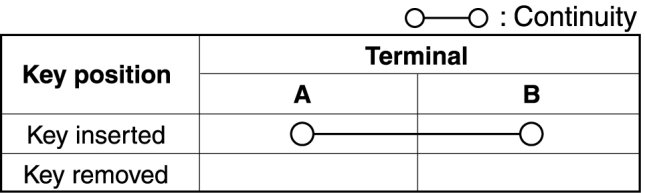

4. Inspect for continuity between the key reminder switch terminals using a tester.






- If there is any malfunction, replace the key reminder switch.
