Front Tilt Motor Inspection

FRONT TILT MOTOR INSPECTION

1. Disconnect the front tilt motor connector.

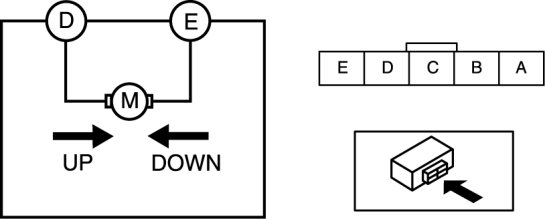

2. Apply battery positive voltage to the front tilt motor terminals and inspect the front tilt motor operation.






- If not as specified, replace the slide adjuster.
