Sun Visor: Service and Repair

SUNVISOR REMOVAL/INSTALLATION

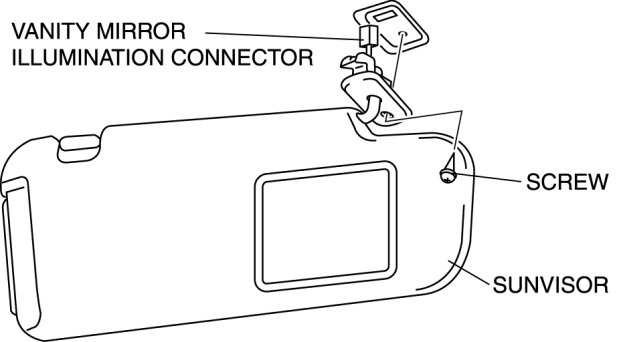

1. Remove the screw, then remove the sunvisor.






2. Disconnect the vanity mirror illumination connector.

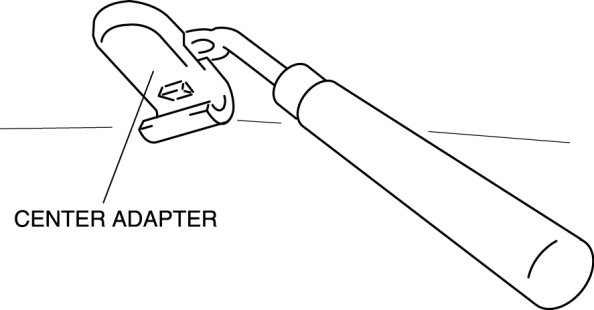

3. Disengage the center adapter (sunvisor stopper) from the body using a fastener remover.






4. Install in the reverse order of removal.
