Passenger Assist Handle: Service and Repair

ASSIST HANDLE REMOVAL/INSTALLATION

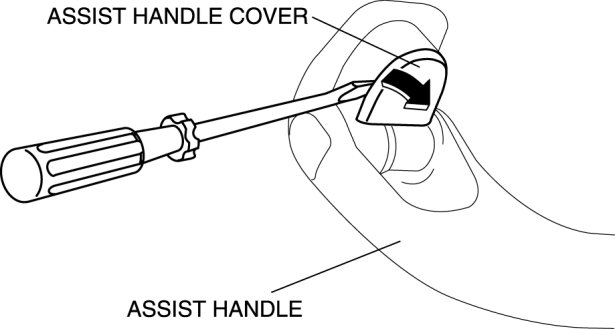

1. Insert a screwdriver into the assist handle notch and remove the assist handle cover.

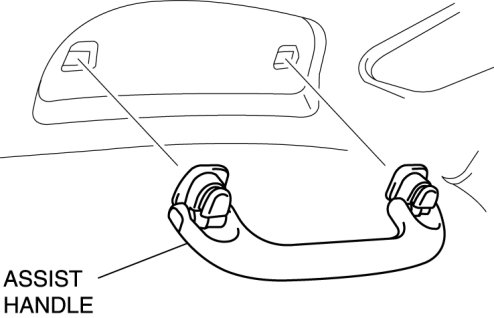

2. Pull the assist handle outward, then remove the assist handle.






3. Install in the reverse order of removal.
