Rear Door Latch: Service and Repair

REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front door trim Rear Door Trim Removal/Installation

b. Front door glass Service and Repair

c. Front door speaker Front Door Speaker Removal/Installation

d. Inner handle Service and Repair

e. Rear door unit Service and Repair

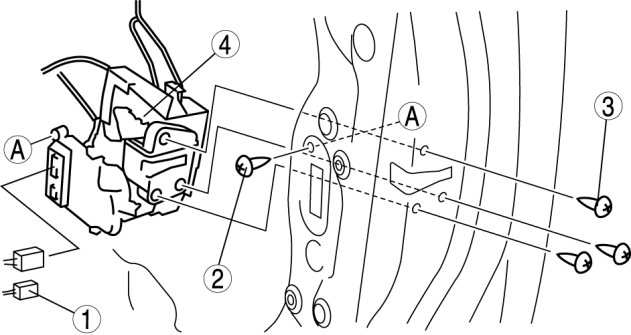

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
