Blind Spot Monitoring (BSM) Wiring Diagram

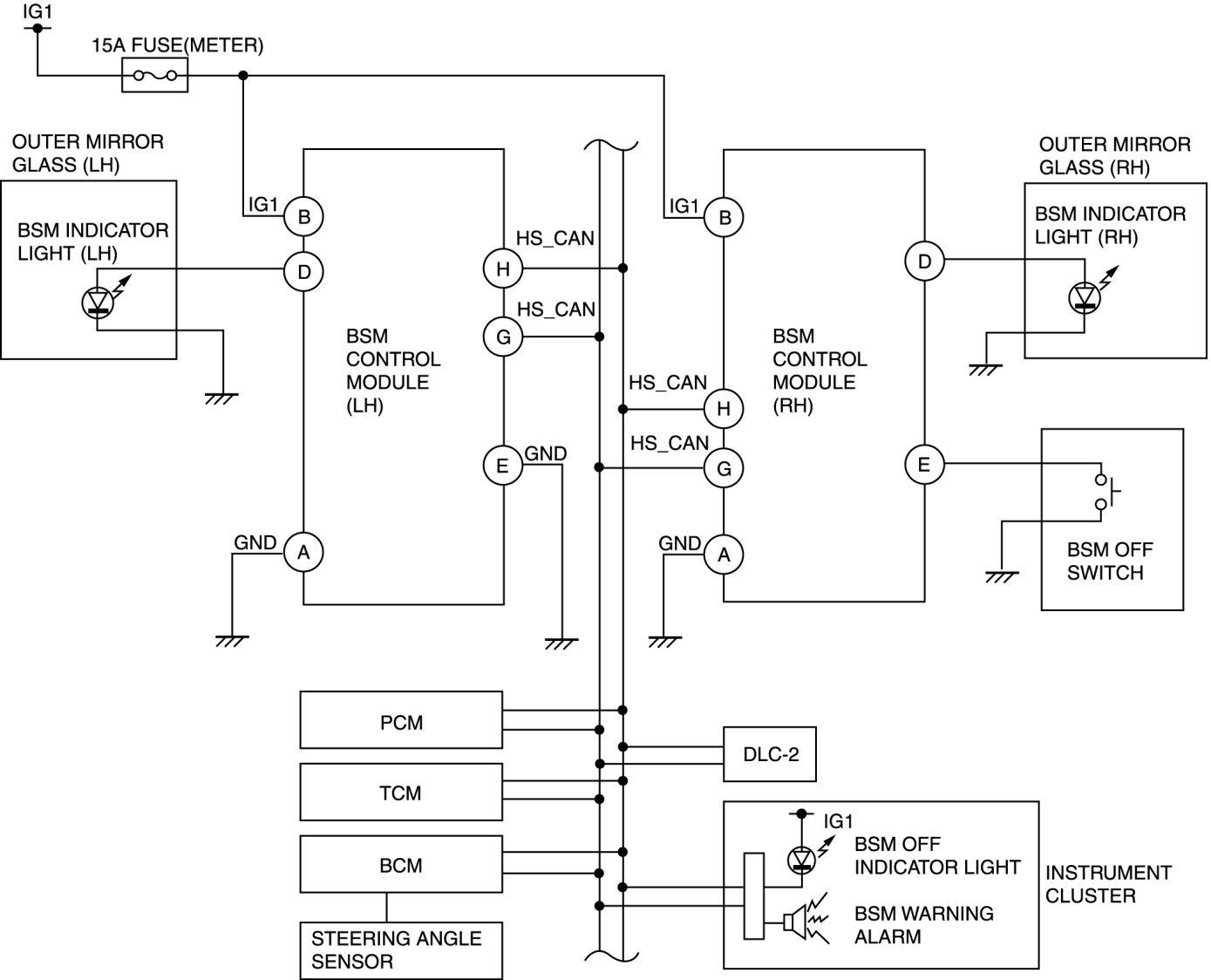

BLIND SPOT MONITORING (BSM) WIRING DIAGRAM [BLIND SPOT MONITORING (BSM)]
