Sirius Satellite Radio Antenna Feeder Inspection

SIRIUS SATELLITE RADIO ANTENNA FEEDER INSPECTION

NOTE:
- SIRIUS satellite radio antenna feeder is integrated with the rear wiring harness.

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear scuff plate inner (RH) Rear Scuff Plate Removal/Installation

b. Rear seat Rear Seat Removal/Installation

c. Sub trunk box Service and Repair

d. Trunk end trim Trunk End Trim Removal/Installation

e. Trunk side trim (RH)

f. D-pillar trim (RH) D-Pillar Trim Removal/Installation

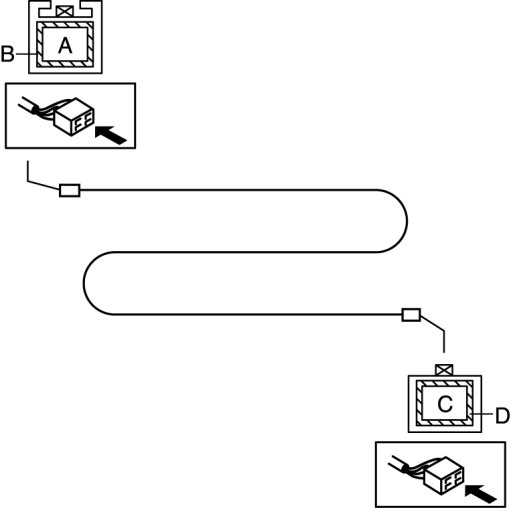

3. Disconnect the SIRIUS satellite radio antenna feeder connector. Service and Repair Antenna Feeder No. 3 Removal/Installation

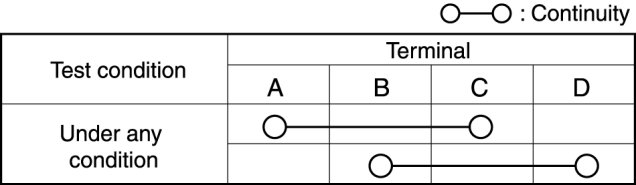

4. Verify that the continuity between SIRIUS satellite radio antenna feeder terminals is as indicated in the table.






- If not as indicated in the table, replace rear wiring harness.
