Antenna Feeder No. 3 Removal/Installation

ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear scuff plate inner Rear Scuff Plate Removal/Installation

b. Rear seat Rear Seat Removal/Installation

c. Sub trunk box Service and Repair

d. Trunk end trim Trunk End Trim Removal/Installation

e. Trunk side trim

f. C-pillar trim C-Pillar Trim Removal/Installation

g. D-pillar trim D-Pillar Trim Removal/Installation

h. Assist handle Service and Repair

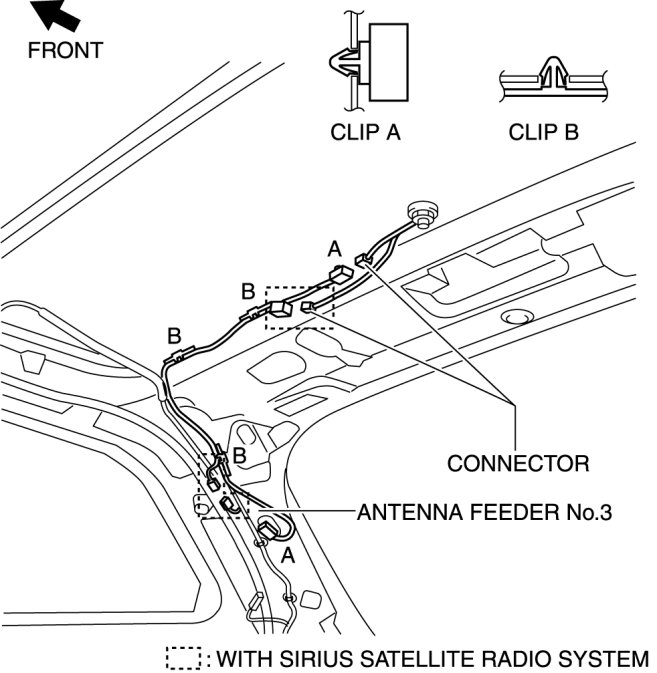

3. Partially peel back the headliner.

4. Disconnect the connector.






5. Remove the clips A and B.

6. Remove the antenna feeder No.3.

7. Install in the reverse order of removal.
