Clock Spring Inspection
- Disconnect the negative battery cable.
- Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
- Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
- Remove the column cover.
- Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION .)

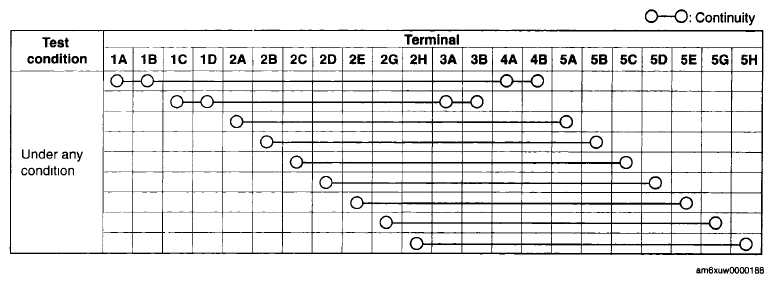

- Verify that the continuity is as indicated in the table.
- If not as indicated in the table, replace the clock spring.
NOTE:

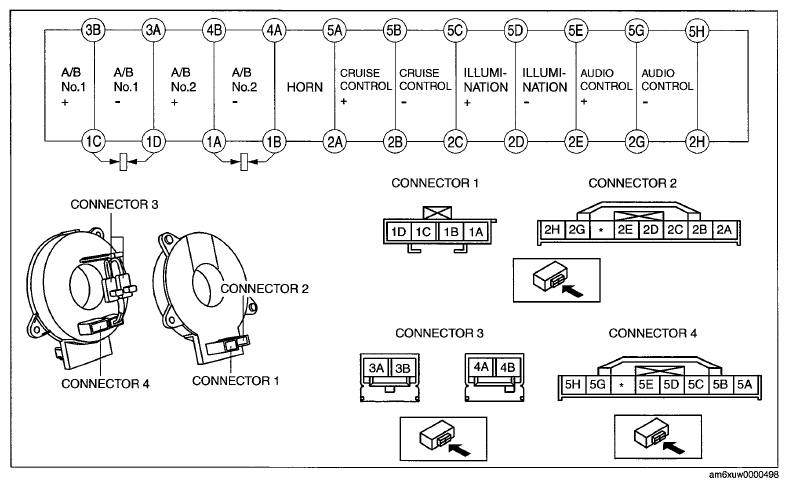

- When the vehicle-side connector for the clock spring is disconnected, terminals 1 A, 1B, 1C and 1D are shorted to prevent unexpected operation (deployment) of the air bag module.
