Joint Hose Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the joint hose and clamp as shown in the figure.

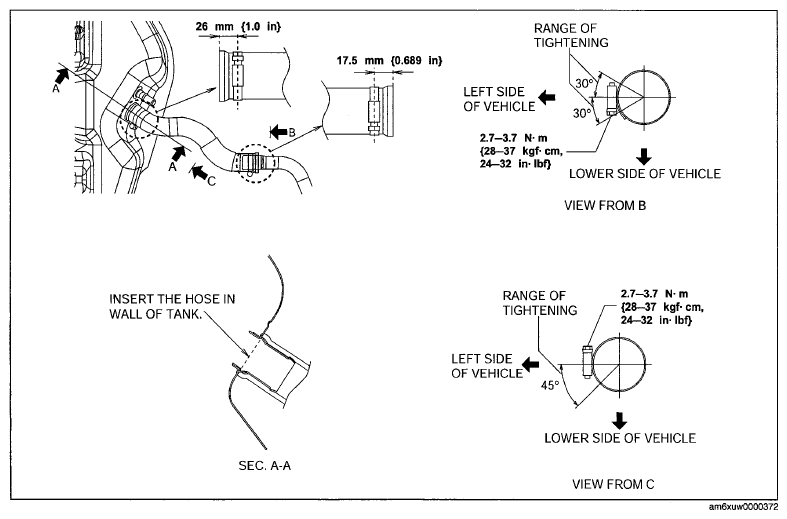

Fig 1: Joint Hose Installation Chart
G07620548Courtesy of MAZDA MOTORS CORP.
