Engine Compartment Side

WARNING: This page is about a different variant/trim than selected.

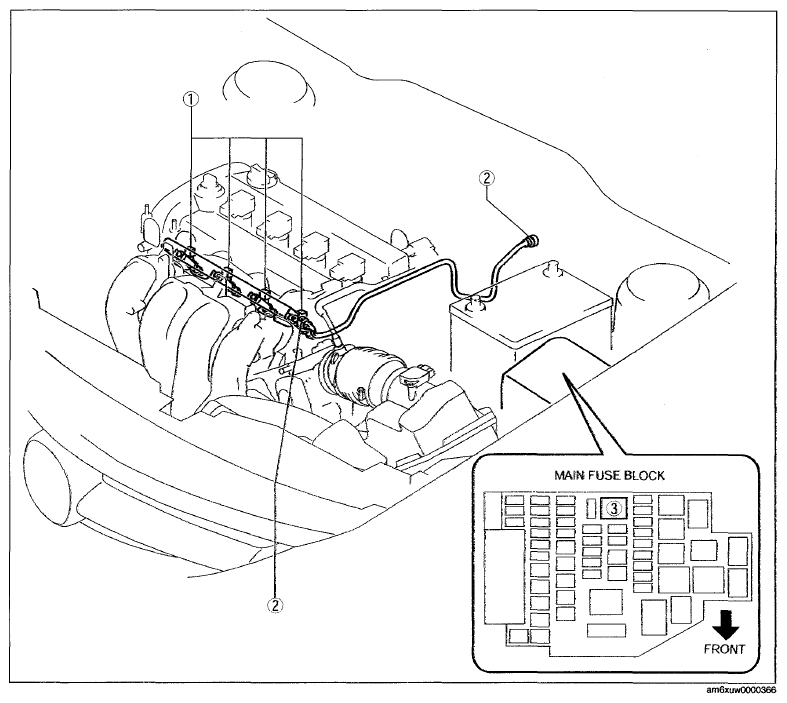

Fig 1: Fuel System Components Location (MZR 2.5) - Engine Compartment Side
G07620531Courtesy of MAZDA MOTORS CORP.
FUEL SYSTEM COMPONENTS REFERENCE CHART

1 Fuel injector
(See FUEL INJECTOR REMOVAL/INSTALLATION .)
(See FUEL INJECTOR INSPECTION .)
2 Quick release connector
(See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
3 Fuel pump relay
(See RELAY INSPECTION .)
