Section 8 (Emission System [MZR 2.5])
>>
Emission System Diagram
Emission System Diagram
WARNING:
This page is about a different variant/trim than selected.

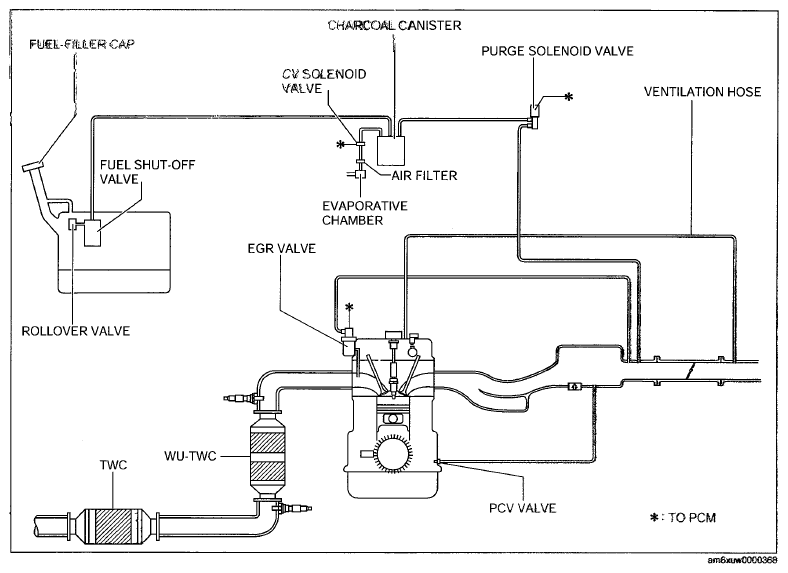

Fig 1: Emission System Diagram (MZR 2.5)
Courtesy of MAZDA MOTORS CORP.
