Upper Mount Rubber Bracket Removal Note

WARNING: This page is about a different variant/trim than selected.

CAUTION:

To present damage to the upper mount rubber bracket tab, do not apply excessive force.

NOTE:

The upper mount rubber bracket can be easily removed fey pressing down the upper mount rubber bracket tab using one hand and pressing the notch area downward using the other hand.

While pressing down the upper mount rubber bracket tab lightly in the direction of the arrow shown in the illustration, press the upper mount rubber bracket toward the vehicle front.
Lift the front part of the upper mount rubber bracket and remove the upper mount rubber bracket.

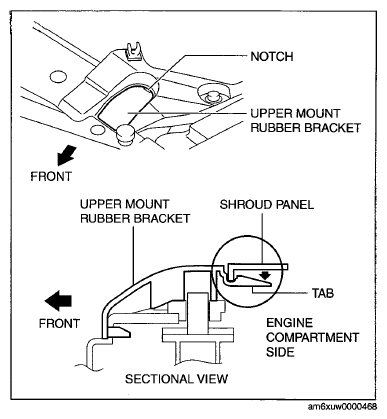

Fig 1: Upper Mount Rubber Bracket Removal

Courtesy of MAZDA MOTORS CORP.
