Engine Coolant Protection Inspection
WARNING: This page is about a different variant/trim than selected.
- Measure the engine coolant temperature and specific gravity using a thermometer and a hydrometer.CAUTION:
- Use engine coolant at a concentration that meets the environmental conditions in which the vehicle is driven, otherwise engine damage could occur.
- The engine has aluminum parts and must be protected by an ethylene-glycol-based coolant to prevent corrosion and freezing.
- Do not use coolants containing Alcohol, Methanol, Borate or Silicate. These coolants could damage the cooling system.
- Use only soft (demineralized) water in the coolant mixture. Water that contains minerals will cut down on the coolant's effectiveness.
- Engine coolant damages paint. If engine coolant does get on a painted surface, rinse it off quickly.
NOTE:- If the "FL22" mark is shown on or near the cooling system cap, use Mazda Genuine FL22 engine coolant.
- FL22 type engine coolant is shipped as a diluted solution. Use the solution as is when replacing coolant.

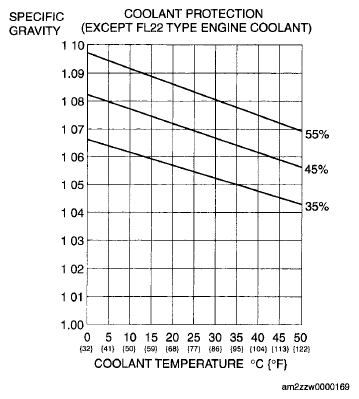

- Determine the engine coolant protection level by referring to the graph shown in the illustration.
- If the engine coolant protection level is not correct, add water or engine coolant.
