Coolant Reserve Tank Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
COOLANT RESERVE TANK COMPONENTS REMOVAL SEQUENCE

1 Wiring harness
2 Hose
3 Coolant reserve tank
(See COOLANT RESERVE TANK REMOVAL NOTE .)

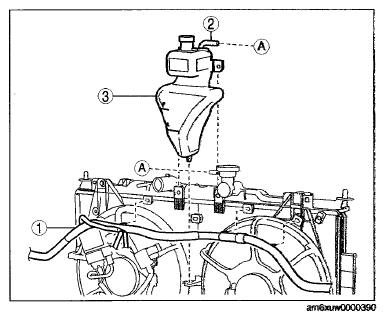

Fig 1: Coolant Reserve Tank Removal/Installation (MZR 2.5)
G07620459Courtesy of MAZDA MOTORS CORP.
