Section 6 (Engine Mechanical [Intake-Air System MZR 2.5])
>>
Intake-Air System Diagram
Intake-Air System Diagram
WARNING:
This page is about a different variant/trim than selected.

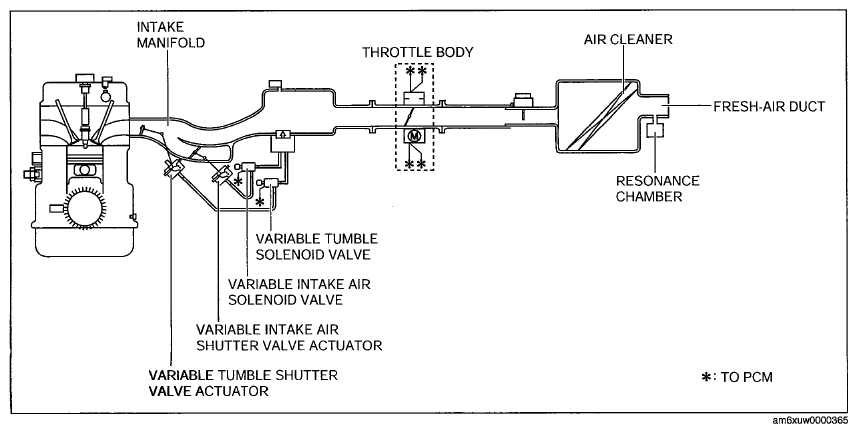

Fig 1: Intake-Air System Diagram (MZR 2.5)
Courtesy of MAZDA MOTORS CORP.
