Gasket Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Apply engine oil to a new gasket.
    CAUTION:
    • Assemble the gasket to the correct position using the following procedure so that the gasket lip does not overlap the oil passage for the oil cooler. Otherwise, it could leak engine oil and damage the engine.
  2. Align the gasket lip to the gasket positioning areas of the oil cooler and assemble the gasket to the oil cooler.

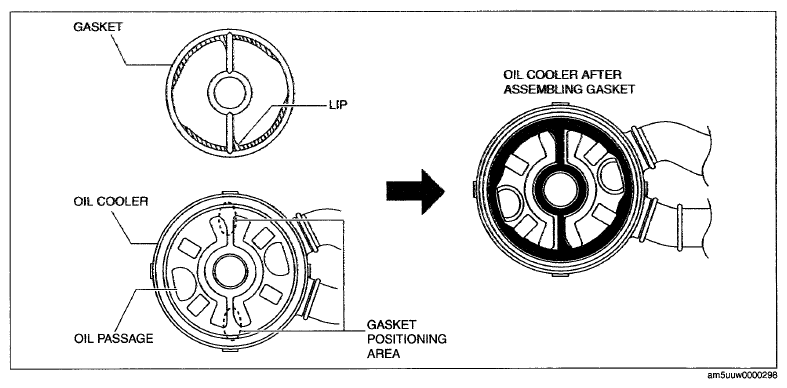

Fig 1: Aligning Gasket Lip To Gasket Positioning Areas Of Oil Cooler And Assemble Gasket To Oil Cooler
G07625651Courtesy of MAZDA MOTORS CORP.
