No. 3 Engine Mount Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  2. Install the SST using the following procedure.
    CAUTION:
    • Refer to the SST manual for the basic handling procedure.
      Fig 1: Rear Shaft, Front Shaft And Side Bar
      G06199792Courtesy of MAZDA MOTORS CORP.
    1. As shown in the illustration, set the rear shafts of the SST  to the left and right shock absorber bolts.

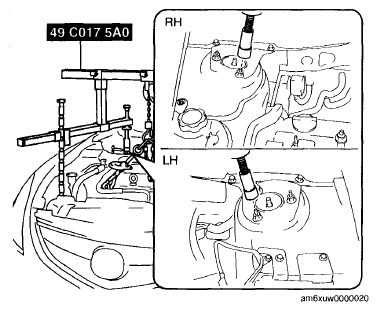

      Fig 2: Setting Rear Shafts Of SST
      G06199793Courtesy of MAZDA MOTORS CORP.
    2. install front foot No. 2 to the left/right front shaft of the SST  , then align the groove of the front shaft of the SST  with the folded up part of the vehicle as shown in the illustration.
    3. Adjust the positions of the SST  side bars so that they are the same height (left and right) and horizontal.
    4. Make sure each joint is securely tightened.

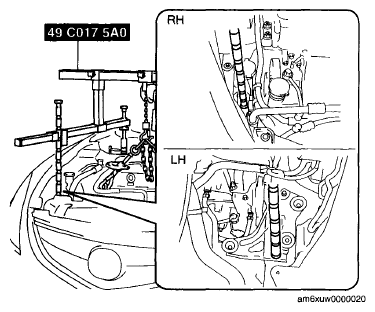

      Fig 3: Adjusting SST Positions
      G06199794Courtesy of MAZDA MOTORS CORP.
  3. Support the engine using the SST  .
    Fig 4: Supporting Engine Using SST
    G06199795Courtesy of MAZDA MOTORS CORP.
