Engine Front Cover Installation note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Install the engine front cover before the applied silicone sealant starts to harden.
  1. Apply silicone sealant to the engine front cover as shown.

    Thickness

    1. 2.2-3.2 mm {0.09-0.12 in}
    2. 1.5-2.5 mm {0.06-0.098 in}
    3. 2.2-4.3 mm {0.09-0.16 in}
    4. 3.3-4.3 mm {0.13-0.16 in}

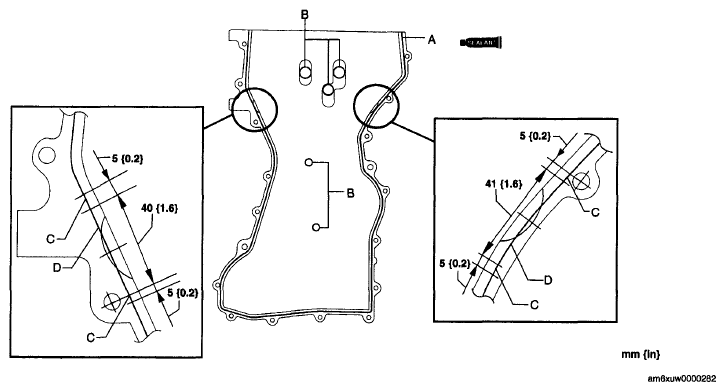

      Fig 1: Silicone Sealant Applying Area
      G06199799Courtesy of MAZDA MOTORS CORP.
  2. Install the engine front cover bolts in the order as shown.
    ENGINE FRONT COVER BOLTS INSTALLING REFERENCE CHART

    No. Tightening torque
    1-18 8-11 N.m (82-112 kgf.cm, 71-97 in.lbf}
    19-22 40-55 N.m {4.1-5.5 kgf.m, 30-40 ft-lbf}

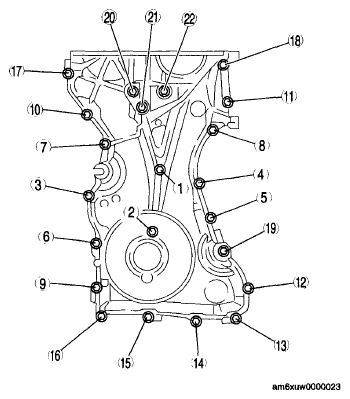

    Fig 2: Engine Front Cover Bolts Installing Sequence
    G06199800Courtesy of MAZDA MOTORS CORP.
