Crankshaft Pulley Lock Bolt Installation Note

WARNING: This page is about a different variant/trim than selected.

Install the SST to the camshaft as shown.
Verify that No. 1 cylinder is at TDC of the compression stroke. (Position counterweight contacts SST .)

Fig 1: Installing SST To Camshafts
Courtesy of MAZDA MOTORS CORP.
To position the crankshaft pulley, temporarily tighten it and, using a suitable bolt (M6 X 1.0) , fix the crankshaft pulley to the engine front cover.

Fig 2: Crankshaft Pulley Mounting Bolt
Courtesy of MAZDA MOTORS CORP.
Hold the crankshaft pulley using the SSTs .
Tighten the crankshaft pulley lock bolt in the order shown in the following two steps using the SST (49D032 316).
Tightening procedure
1. 96-104 N.m {9.8-10 kgf.m, 71-76 ft.lbf}
2. 87-93°

  Fig 3: Tightening Crankshaft Pulley Lock Bolt Using SST
  Courtesy of MAZDA MOTORS CORP.
Remove the bolt (M6 X 1.0) installed to the crankshaft pulley.
Remove the SST from the camshaft.
Remove the SST from the cylinder block lower blind plug hole.
Rotate the crankshaft clockwise two turns and inspect the valve timing.
- If not aligned, loosen the crankshaft pulley lock bolt and repeat from Step 1.
Install the cylinder block lower blind plug.
Tightening torque 18-22 N m {1.9-2.2 kgf.m, 14-16 ft.lbf}

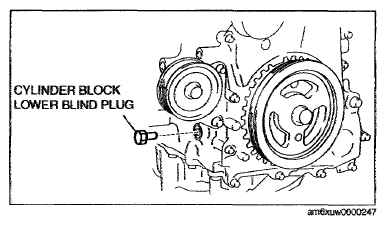

Fig 4: Cylinder Block Lower Blind Plug
Courtesy of MAZDA MOTORS CORP.
