Chain Tensioner Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Using a thin screwdriver, hold the chain tensioner ratchet lock mechanism away from the ratchet stem.
  2. Slowly compress the tensioner piston.
  3. Hold the tensioner piston using a 1.5 mm {0.059 in}  wire or paper clip.

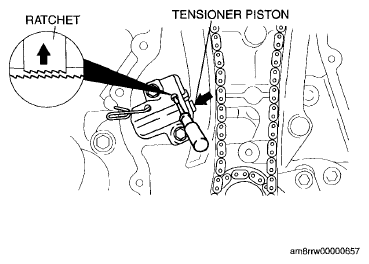

    Fig 1: Holding Chain Tensioner Ratchet Lock Mechanism Using Thin Screwdriver
    G06199796Courtesy of MAZDA MOTORS CORP.
