Crankshaft Pulley Lock Bolt Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the cylinder block lower blind plug.
  2. Install the SST.
  3. Turn the crankshaft clockwise until the crankshaft is in the No. 1 cylinder TDC position (until the balance weight is attached in the SST)  .
    Fig 1: Installing SST
    G06199768Courtesy of MAZDA MOTORS CORP.
  4. Hold the crankshaft pulley using the SSTs.

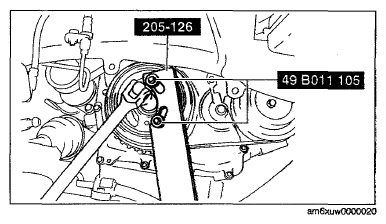

    Fig 2: Holding Crankshaft Pulley Using SST
    G07620404Courtesy of MAZDA MOTORS CORP.
