Camshaft Removal Note

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • The cylinder head and the camshaft caps are numbered to be reassembled in their original position correctly. When removed, keep the caps with the cylinder head they were removed from. Do not mix the caps.
  1. Loosen the camshaft cap bolts in 2-3 steps in the order shown in the illustration.

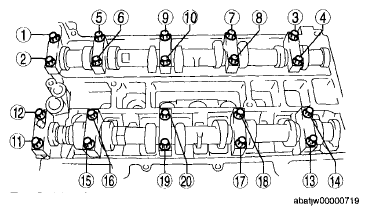

    Fig 1: Camshaft Cap Bolts Loosening Sequence
    G06199777Courtesy of MAZDA MOTORS CORP.
