Symptom Troubleshooting Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

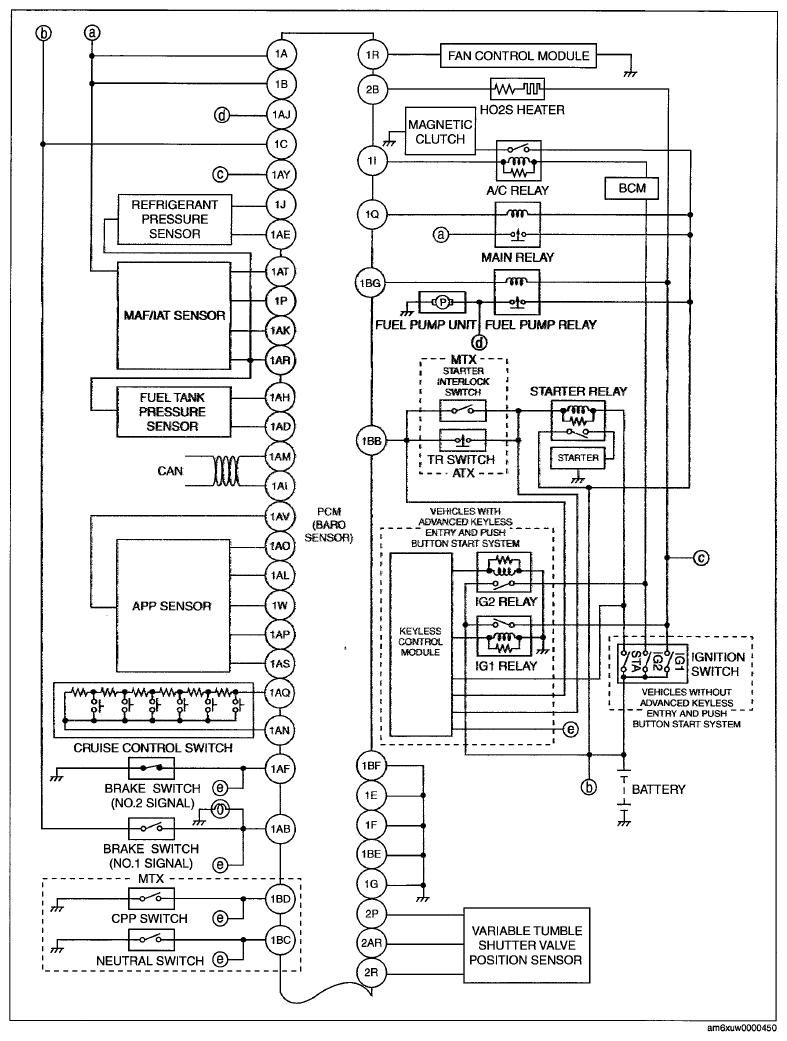

Fig 1: Symptom Troubleshooting Wiring Diagram (1 Of 2)
G07620279Courtesy of MAZDA MOTORS CORP.

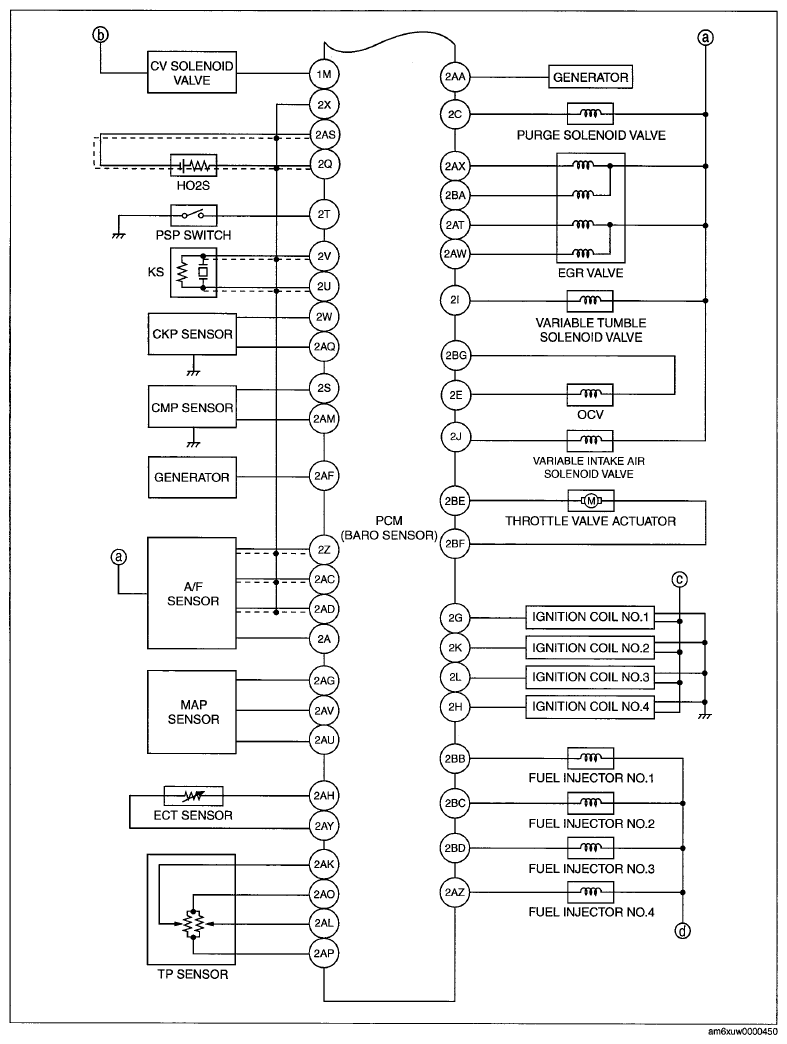

Fig 2: Symptom Troubleshooting Wiring Diagram (2 Of 2)
G07620280Courtesy of MAZDA MOTORS CORP.
