Quick Diagnostic Chart

WARNING: This page is about a different variant/trim than selected.

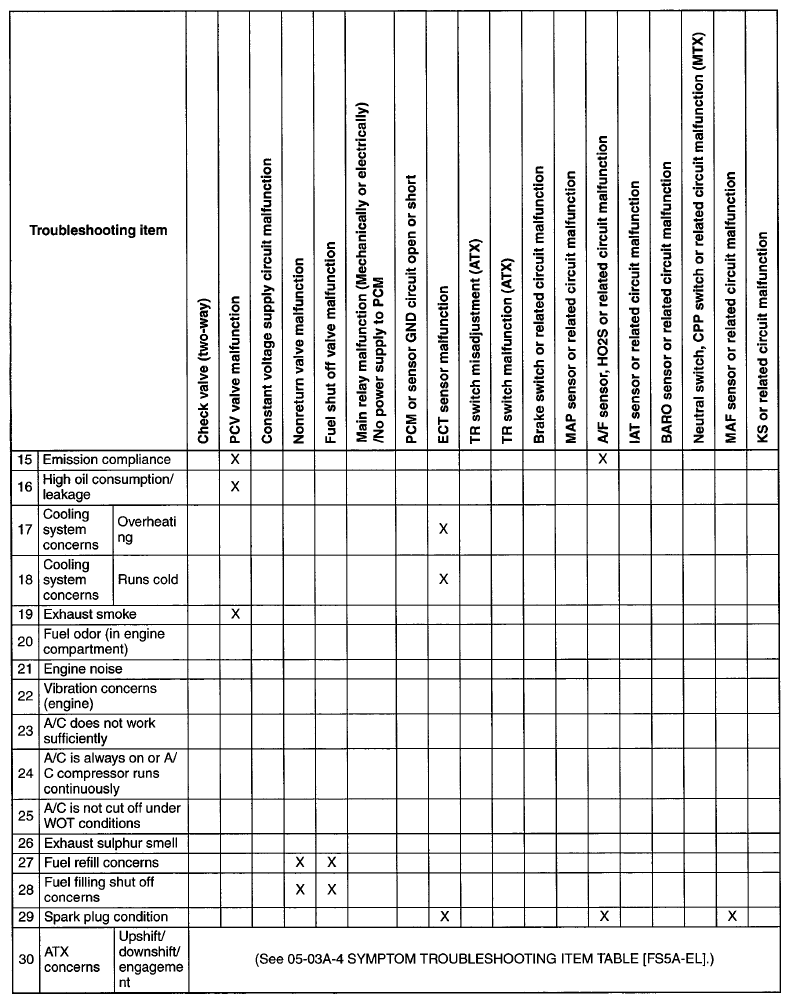

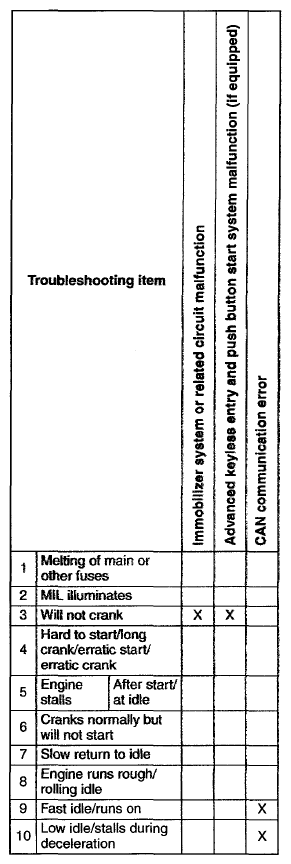

Fig 1: Quick Diagnostic Chart (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

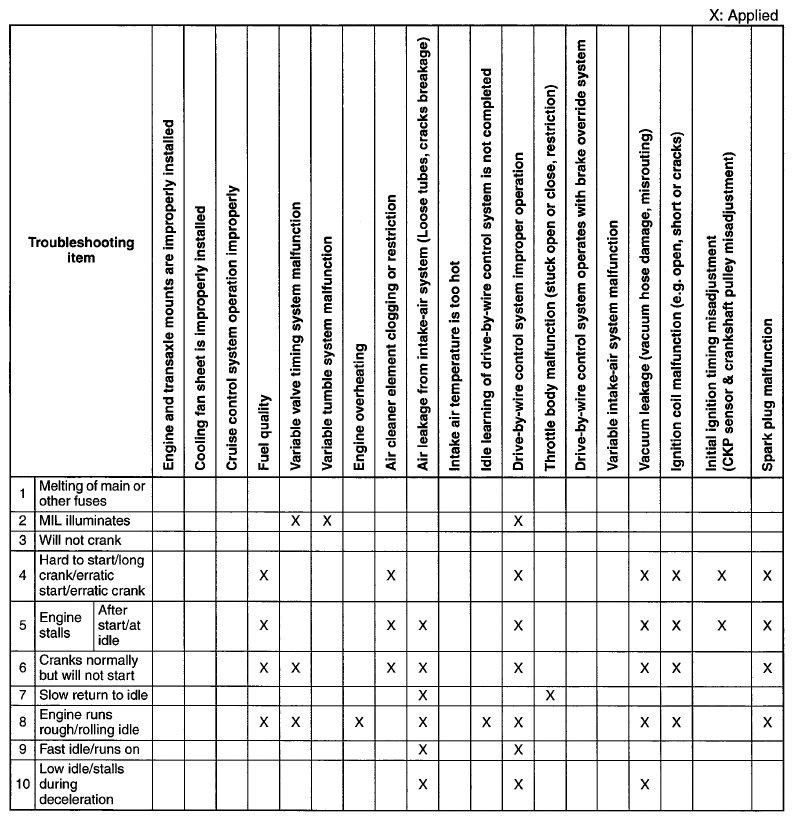

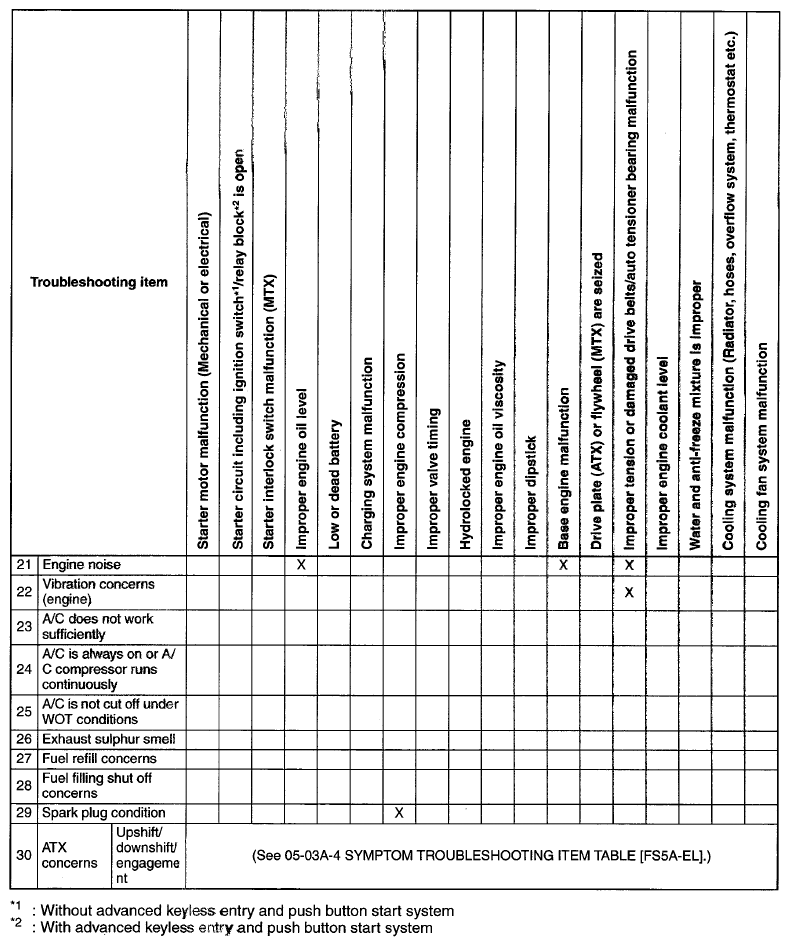

Fig 2: Quick Diagnostic Chart (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

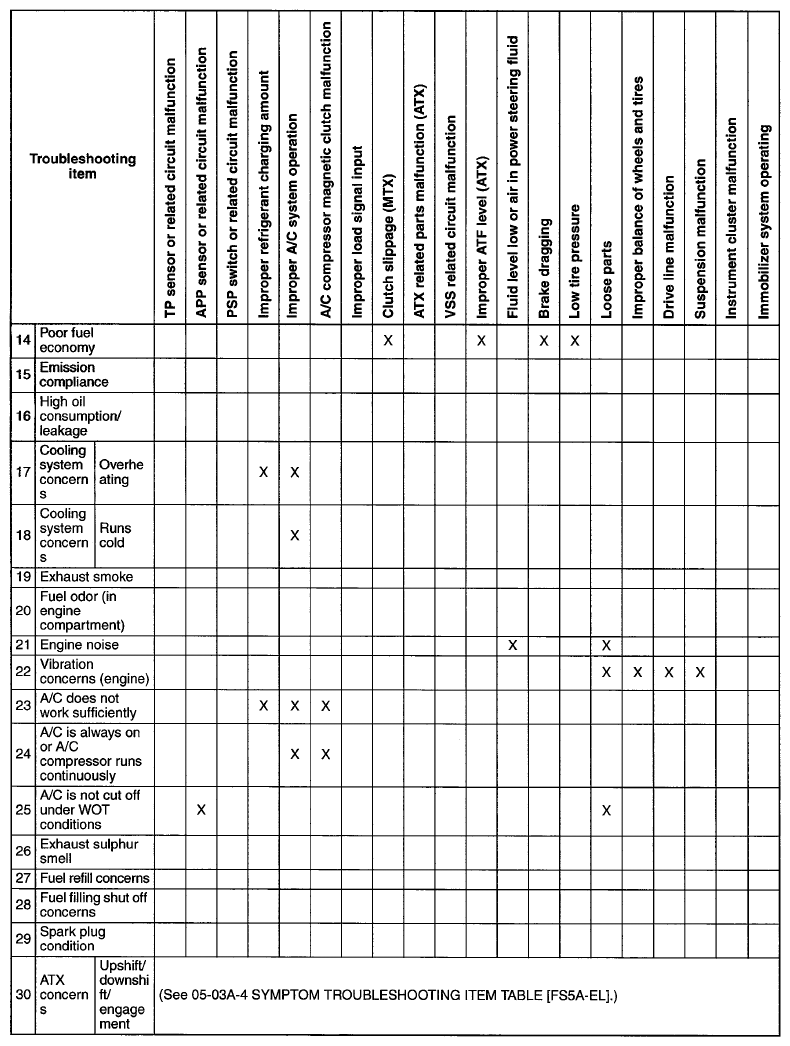

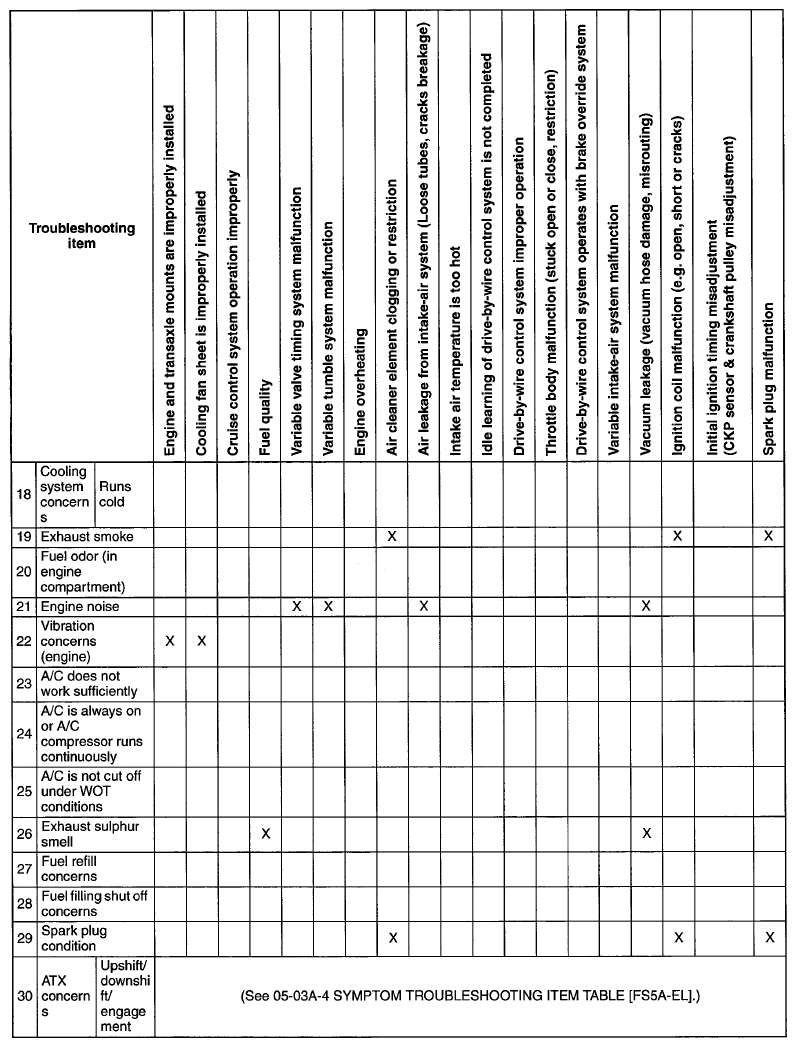

Fig 3: Quick Diagnostic Chart (3 Of 3)

Courtesy of MAZDA MOTORS CORP.

^*1 : Without advanced keyless entry and push button start system

^*2 : With advanced keyless entry and push button start system

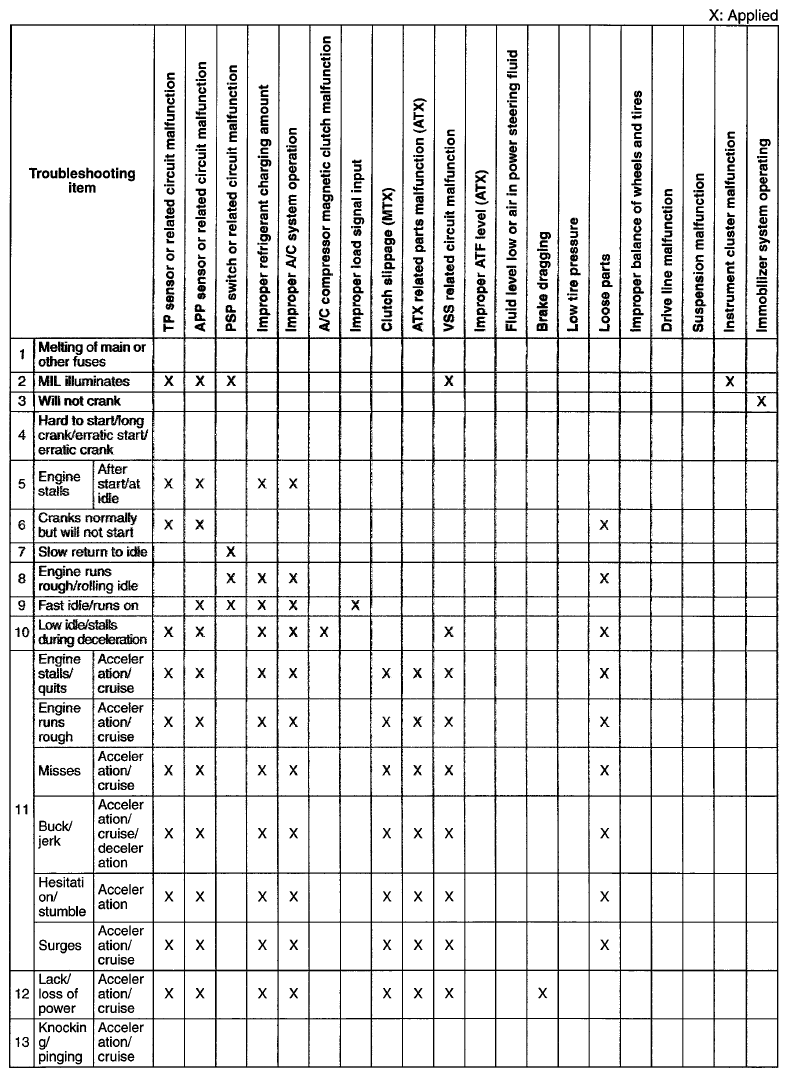

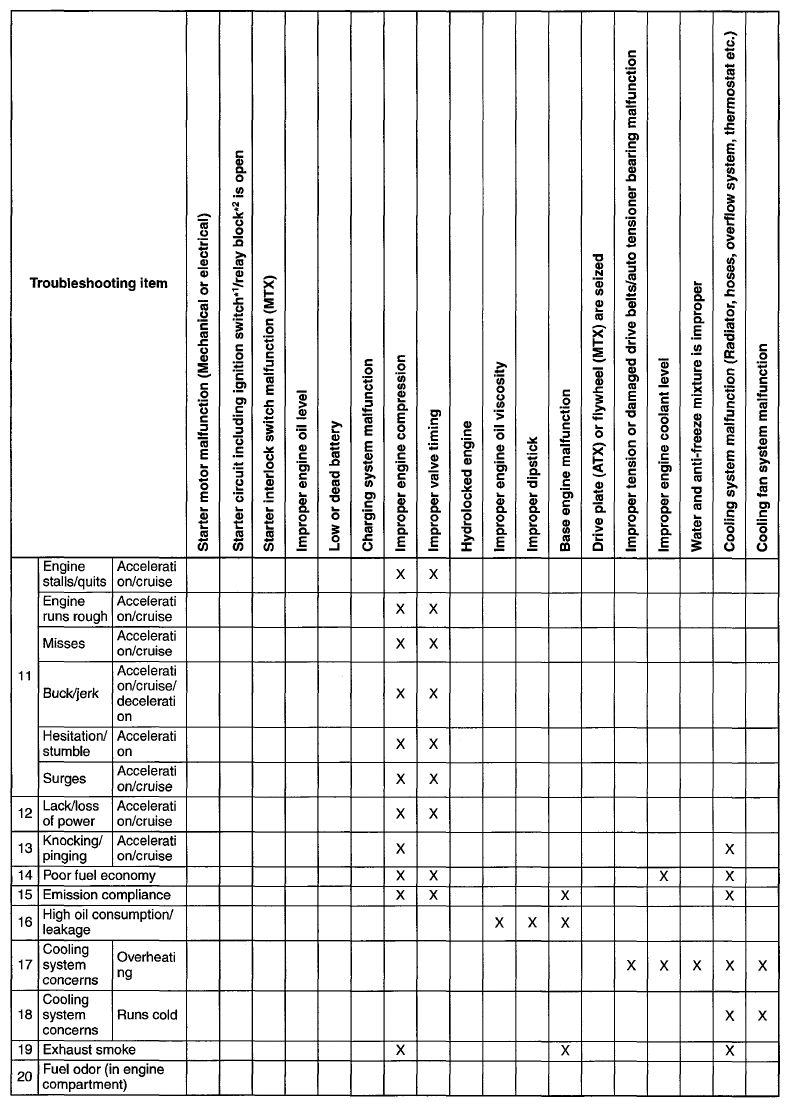

Fig 4: Quick Diagnostic Chart (1 Of 13)

Courtesy of MAZDA MOTORS CORP.

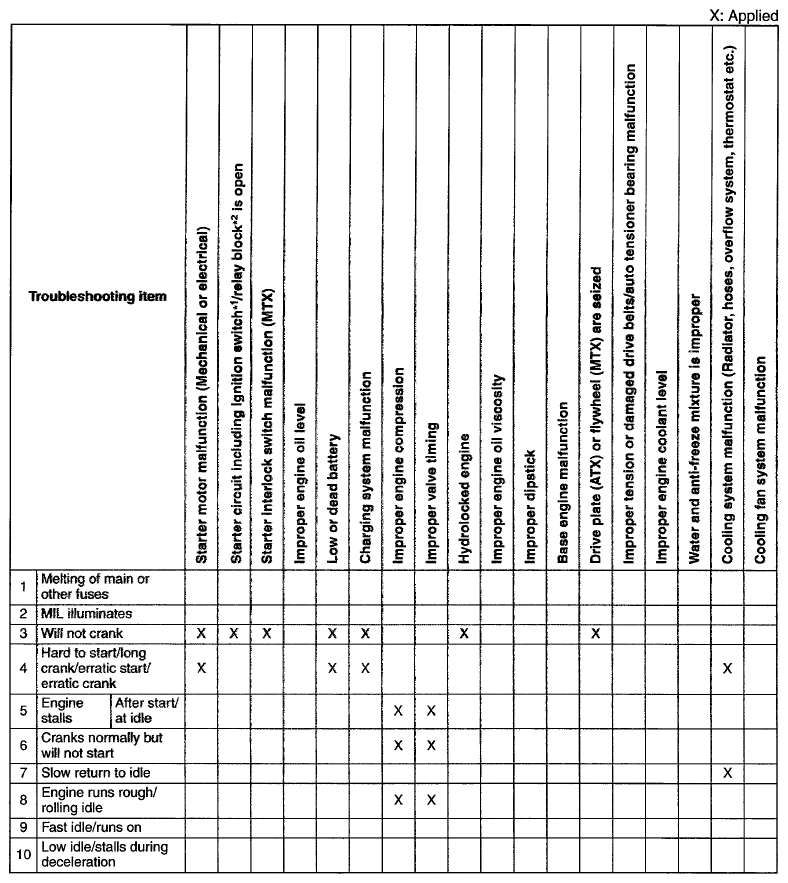

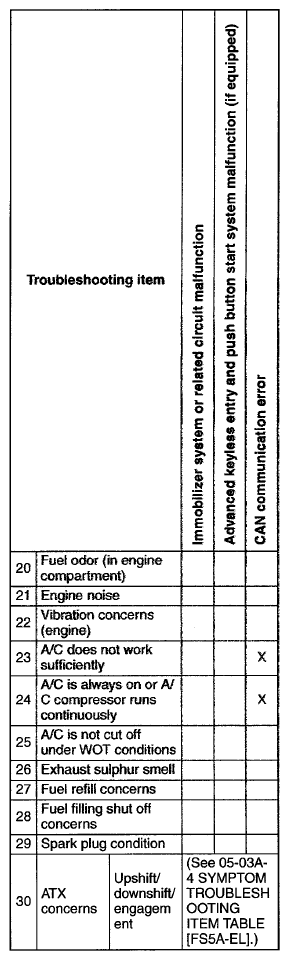

Fig 5: Quick Diagnostic Chart (2 Of 13)

Courtesy of MAZDA MOTORS CORP.

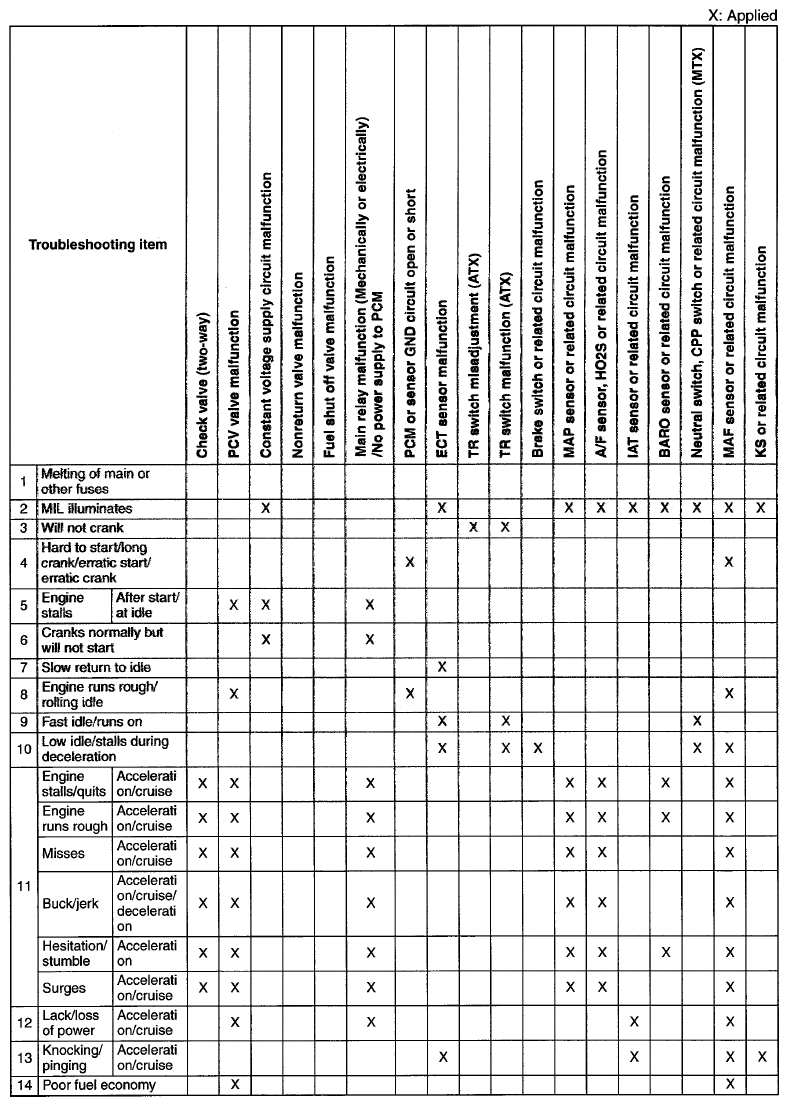

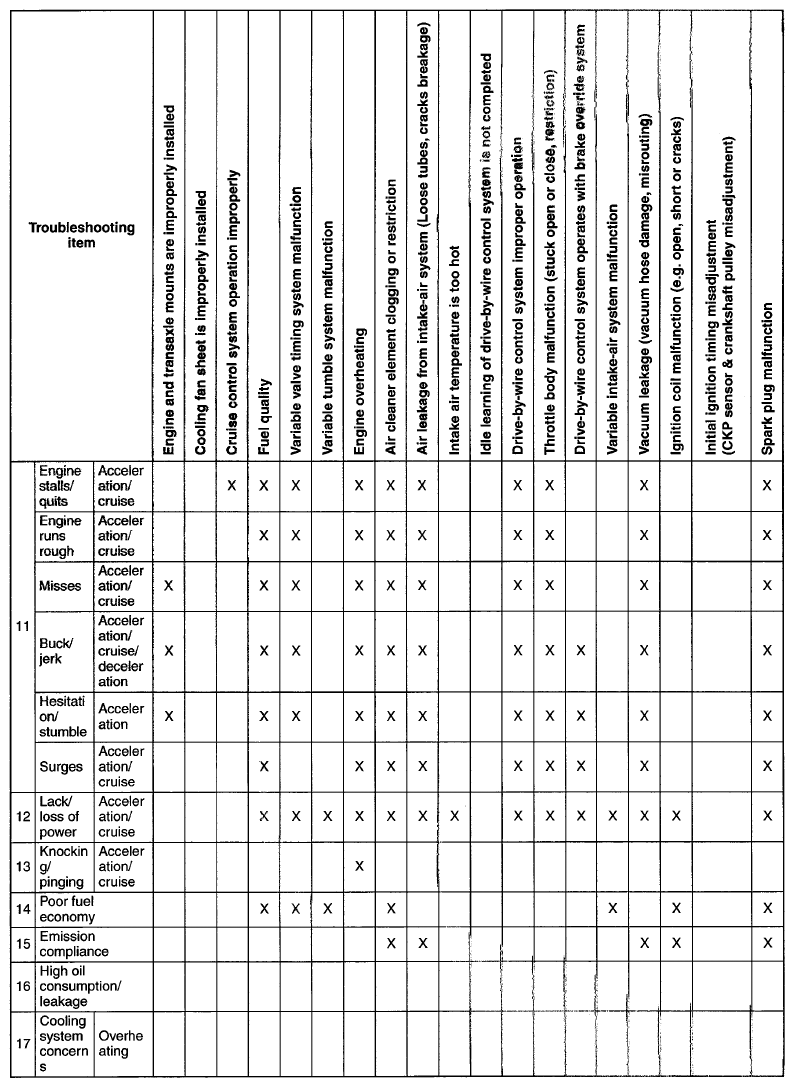

Fig 6: Quick Diagnostic Chart (3 Of 13)

Courtesy of MAZDA MOTORS CORP.

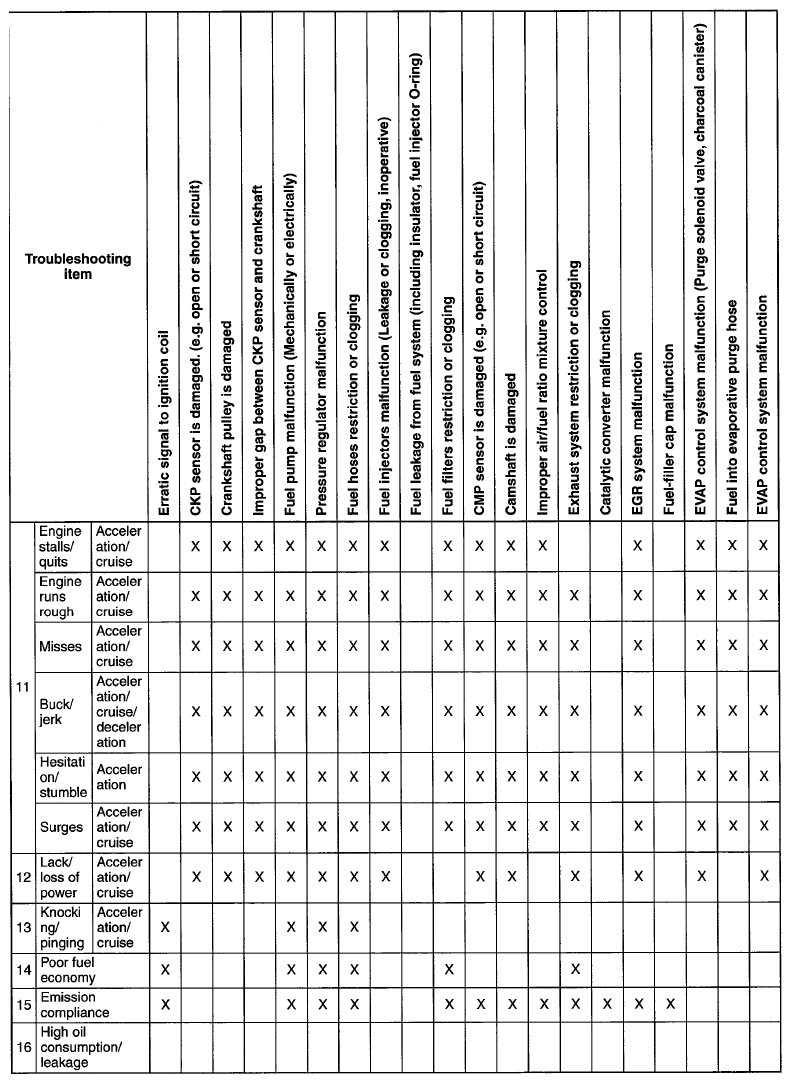

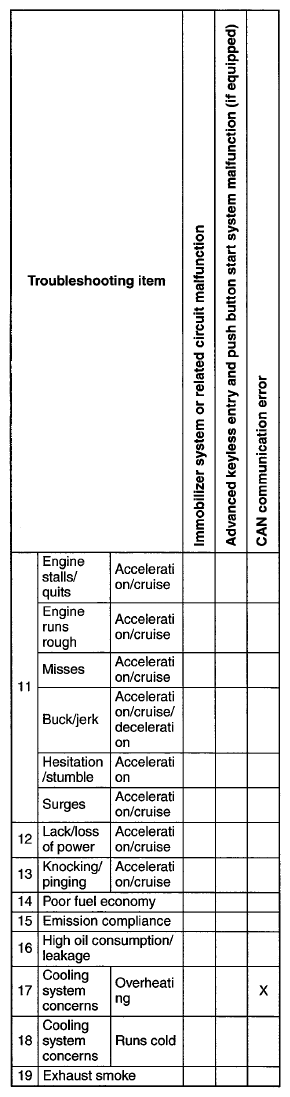

Fig 7: Quick Diagnostic Chart (4 Of 13)

Courtesy of MAZDA MOTORS CORP.

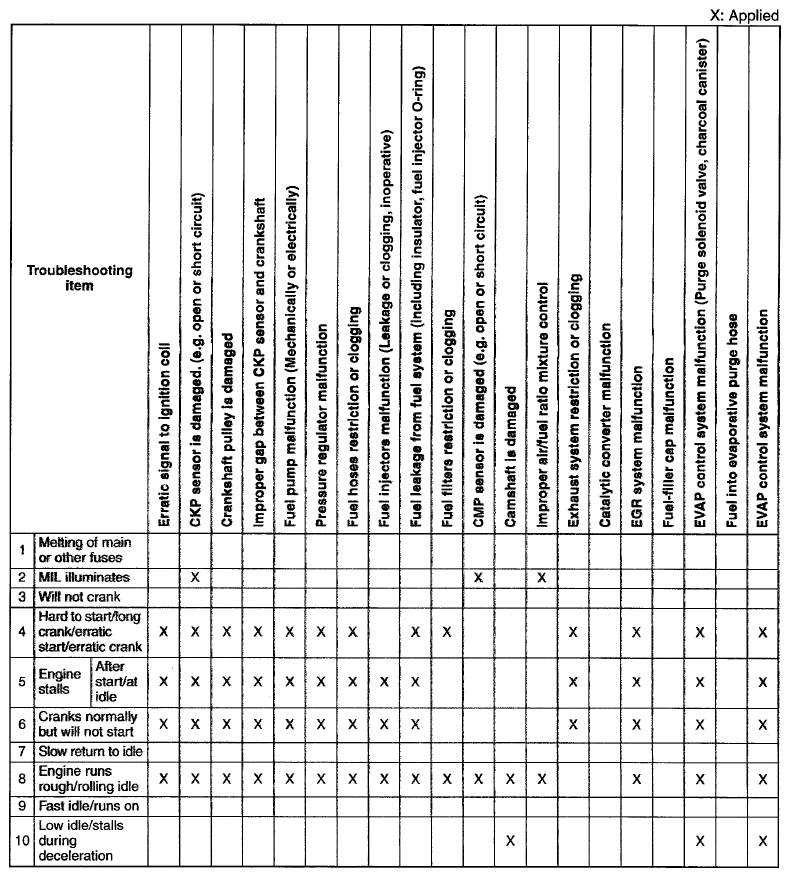

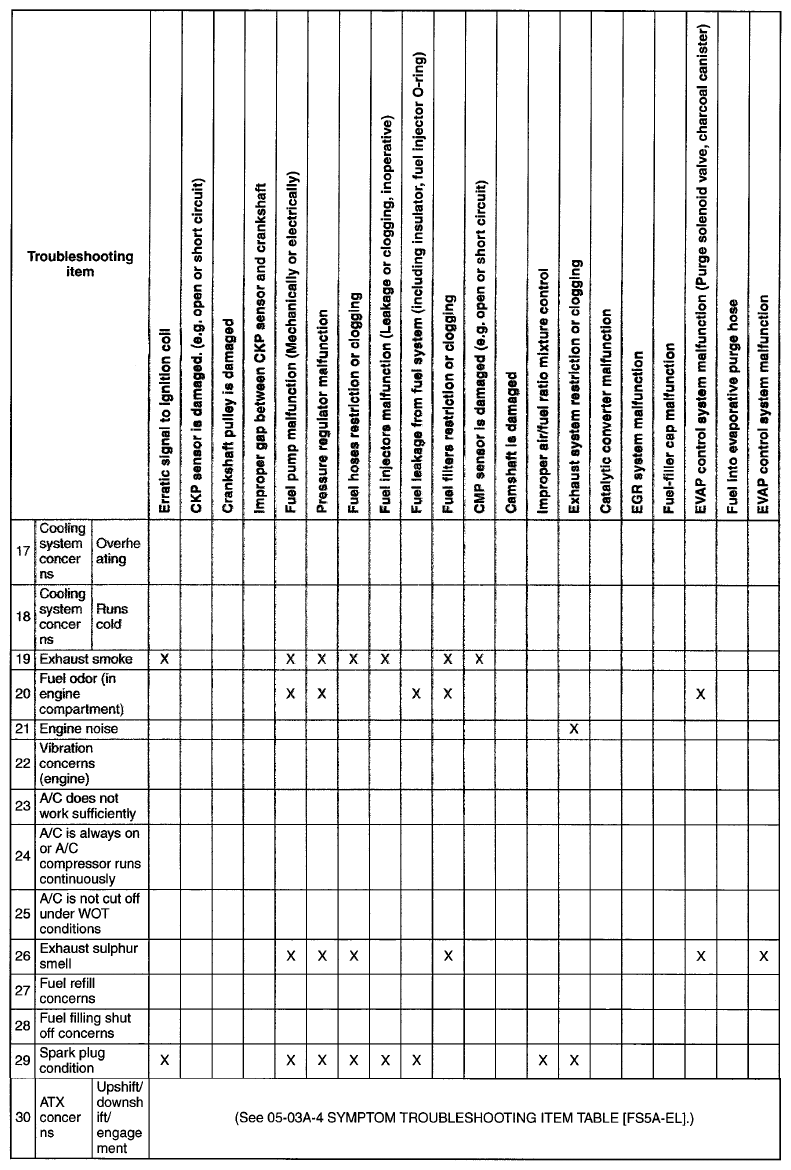

Fig 8: Quick Diagnostic Chart (5 Of 13)

Courtesy of MAZDA MOTORS CORP.

Fig 9: Quick Diagnostic Chart (6 Of 13)

Courtesy of MAZDA MOTORS CORP.

Fig 10: Quick Diagnostic Chart (7 Of 13)

Courtesy of MAZDA MOTORS CORP.

Fig 11: Quick Diagnostic Chart (8 Of 13)

Courtesy of MAZDA MOTORS CORP.

Fig 12: Quick Diagnostic Chart (9 Of 13)

Courtesy of MAZDA MOTORS CORP.

Fig 13: Quick Diagnostic Chart (10 Of 13)

Courtesy of MAZDA MOTORS CORP.

X: Applied

Fig 14: Quick Diagnostic Chart (11 Of 13)

Courtesy of MAZDA MOTORS CORP.

Fig 15: Quick Diagnostic Chart (12 Of 13)

Courtesy of MAZDA MOTORS CORP.

Fig 16: Quick Diagnostic Chart (13 Of 13)

Courtesy of MAZDA MOTORS CORP.
