No. 1 Melting Of Main Or Other Fuses

WARNING: This page is about a different variant/trim than selected.

SYMPTOM CHART (MELTING OF MAIN OR OTHER FUSES)

1	MELTING OF MAIN OR OTHER FUSES

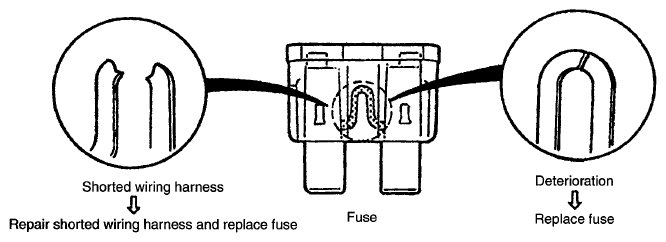

[TROUBLESHOOTING HINTS] Inspect condition of fuse.
Damaged fuse	Related wiring harness
MAIN	MAIN fuse BTN fuse ROOM fuse FAN fuse IG KEY 2 fuse Generator
BTN	BTN fuse ROOM fuse
ROOM	ROOM fuse DLC-2
FAN	FAN fuse Fan control module relay
IG KEY2	IG KEY2 fuse Starter relay
FUEL PUMP	FUEL PUMP fuse Fuel pump unit
ST SIG	ST SIG fuse Starter relay
EGI INJ	EGI INJ fuse Fuel injector No. 1 Fuel injector No. 2 Fuel injector No. 3 Fuel injector No. 4 PCM
ENG+B	ENG+B fuse PCM CV solenoid valve
PCM	PCM fuse PCM
ENGINE IG	ENGINE IG fuse Ignition coil No. 1 Ignition coil No. 2 Ignition coil No. 3 Ignition coil No. 4 PCM Fuel pump relay Diode Fan control module relay
HO2S	HO2S fuse HO2S (heater)
1	MELTING OF MAIN OR OTHER FUSES
ENGINE	ENGINE fuse Variable tumble solenoid valve Variable intake air solenoid valve EGR valve Purge solenoid valve A/F sensor MAF/IAT sensor
