Section 3 (Symptom Troubleshooting [Engine Mechanical MZR 2.5])
>>
Control System Device And Control Relationship Chart
Control System Device And Control Relationship Chart
WARNING:
This page is about a different variant/trim than selected.

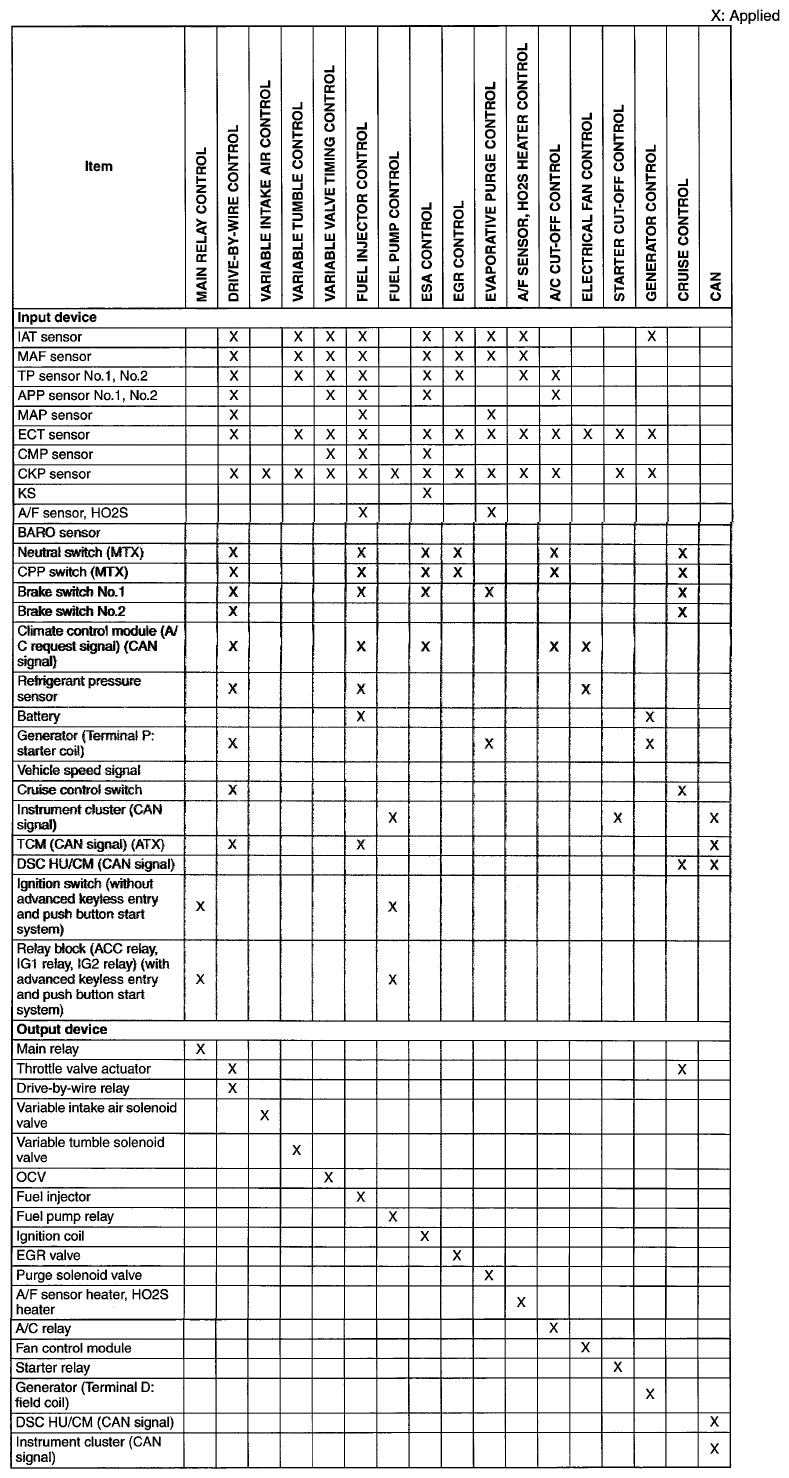

Fig 1: Control System Device And Control Relationship Chart
Courtesy of MAZDA MOTORS CORP.
